Chevrolet LS pad mount LH (motor underneath) high torque starter motor

LMS322

Type Weight Voltage Polarity Power
Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 11 29mm
Chevrolet LS pad mount LH (motor underneath) super-duty starter motor

LMS873

Type Weight Voltage Polarity Power
Denso OSGR 4.1Kg / 9.03lbs 12V Both 2.0kW
Chevrolet LS pad mount RH (motor on top) high torque starter motor

LMS374

Type Weight Voltage Polarity Power
Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 11 29mm
Chevrolet LS pad mount RH (motor on top) high torque starter motor (24 Volt)

LMS374-24V

Type Weight Voltage Polarity Power
Denso OSGR *r 3.7Kg / 8.15lbs 24V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 11 29mm
Chevrolet LS pad mount RH (motor on top) super-duty starter motor

LMS874

Type Weight Voltage Polarity Power
Denso OSGR 4.1Kg / 9.03lbs 12V Both 2.0kW
Rotation Pinion Teeth Pinion Dia
CW 11 29mm
Chevrolet Matiz & Spark 170A Alternator

LMA695-HO

Amp Hand Lugs Type Weight
170A 180° 3 Billet 3.9kg / 8.6lbs
Voltage Polarity Connection B+ Position Pulley
12V -VE B+ / IG / L Fixed LMP001
Chevrolet Matiz & Spark 95A Alternator

LMA695

Amp Hand Lugs Type Weight
95A 180° 3 Billet 3.9kg / 8.6lbs
Voltage Polarity Connection B+ Position Pulley
12V -VE B+ / IG / L Fixed LMP001
Chevrolet Series AA Capitol high torque starter motor

LMS1458

Type Weight Voltage Polarity Power
Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 10 37mm
Chevrolet Straight 6 (Hydromatic transmission) starter motor

LMS1205

Type Weight Voltage Polarity Power
Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 9 29mm
Chevrolet straight 6 1930's 95A Dynator

LMDCHEV001

Amp Voltage Polarity B+ Position Pulley
95A 12V -VE Fixed LMP001
Chevrolet straight 6 1930's 95A Dynator (+VE Ground)

LMDCHEV001+VE

Amp Voltage Polarity B+ Position Pulley
95A 12V +VE Fixed LMP001
Chevrolet straight 6 1930's 95A Dynator (+VE Ground) (6 Volt)

LMDCHEV001+VE-6V

Amp Voltage Polarity B+ Position Pulley
95A 6V +VE Fixed LMP001
Chevrolet straight 6 1930's 95A Dynator (17mm V)

LMDCHEV001-17V

Amp Voltage Polarity B+ Position Pulley
95A 12V -VE Fixed LMP001
Chevrolet straight 6 1930's 95A Dynator (17mm V) (+VE Ground)

LMDCHEV001-17V+VE

Amp Voltage Polarity B+ Position Pulley
95A 12V +VE Fixed LMP001
Chevrolet straight 6 1930's 95A Dynator (17mm V) (+VE Ground) (6 Volt)

LMDCHEV001-17V+VE-6V

Amp Voltage Polarity B+ Position Pulley
95A 6V +VE Fixed LMP001
Chevrolet straight 6 1930's 95A Dynator (17mm V) (6 Volt)

LMDCHEV001-17V-6V

Amp Voltage Polarity B+ Position Pulley
95A 6V -VE Fixed LMP001
Chevrolet straight 6 1930's 95A Dynator (6 Volt)

LMDCHEV001-6V

Amp Voltage Polarity B+ Position Pulley
95A 6V -VE Fixed LMP001
Chevrolet straight 6 'various' (139 tooth ring gear) high torque starter motor

LMS931

Type Weight Voltage Polarity Power
Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 9 29mm
Chevrolet straight 6 'various' (139 tooth ring gear) high torque starter motor (6 volt)

LMS931-6V-2.0

Type Weight Voltage Polarity Power
Denso OSGR *r 4.1Kg / 9.03lbs 6V Both 2.0kW
Rotation Pinion Teeth Pinion Dia
CW 9 29mm
Chevrolet straight 6 'various' (168 tooth ring gear) high torque starter motor

LMS076

Type Weight Voltage Polarity Power
Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 9 25mm
Chevrolet V8 & straight 6 parallel hole pad mount 1.4kW 'Tilton type' starter motor

LMS515

Type Weight Voltage Polarity Power
Hitachi WFGR 4.7Kg / 10.36lbs 12V Both 1.4kW
Rotation
CW
Chevrolet V8 & straight 6 parallel hole pad mount 2.0kW 'Tilton type' starter motor

LMS045

Type Weight Voltage Polarity Power
Hitachi WFGR 4.9Kg / 10.80lbs 12V Both 2.0kW
Rotation Pinion Teeth Pinion Dia
CW 9 25mm
Chevrolet V8 & straight 6 parallel hole pad mount LH (motor underneath) high torque starter motor

LMS875

Type Weight Voltage Polarity Power
Denso OSGR 3.7Kg / 8.15lbs 12V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 11 29mm
Chevrolet V8 & straight 6 parallel hole pad mount LH (motor underneath) super-duty starter motor

LMS877

Type Weight Voltage Polarity Power
Denso OSGR 4.1Kg / 9.03lbs 12V Both 2.0kW
Rotation Pinion Teeth Pinion Dia
CW 11 29mm
Chevrolet V8 & straight 6 parallel hole pad mount RH (motor on top) high torque starter motor

LMS876

Type Weight Voltage Polarity Power
Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 11 29mm

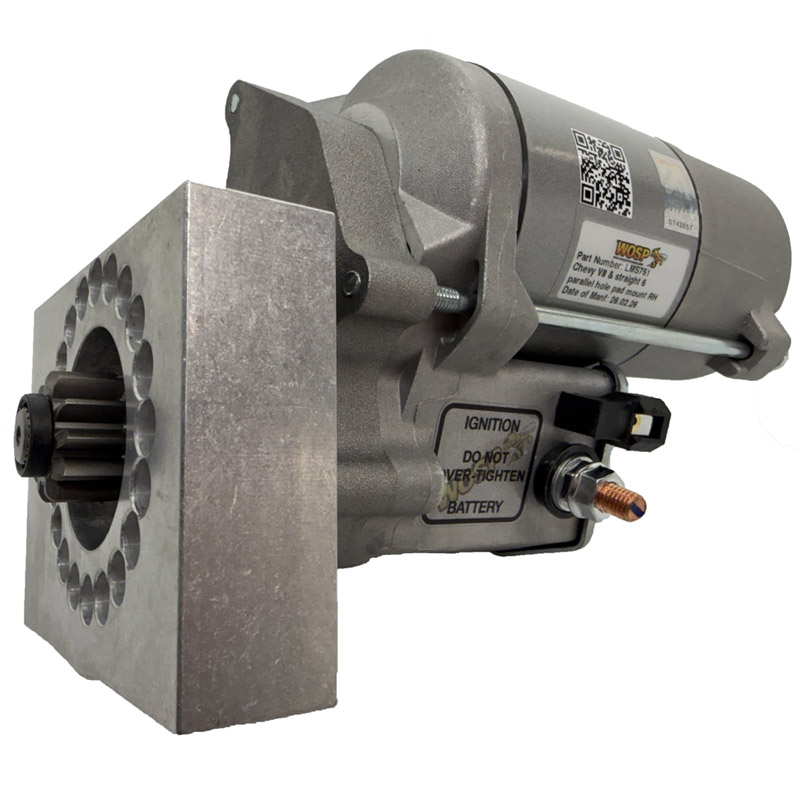

Chevrolet V8 & straight 6 parallel hole pad mount RH (motor on top) super-duty starter motor

LMS751

Type Weight Voltage Polarity Power
Denso OSGR 4.1Kg / 9.03lbs 12V Both 2.0kW
Rotation Pinion Teeth Pinion Dia
CW 11 29mm
Chevrolet V8 & straight 6 parallel hole pad mount slimline starter motor

LMS273

Type Weight Voltage Polarity Power
Hitachi PMGR 3.0Kg / 6.61lbs 12V -VE 1.4kW
Rotation
CW
Chevrolet V8 ( 99 tooth ring gear ) | Lola T70 super-duty starter

LMS1417

Type Weight Voltage Polarity Power
Denso OSGR 4.1Kg / 9.03lbs 12V Both 2.0kW
Rotation Pinion Teeth Pinion Dia
CW 13 40mm
Chevrolet V8 (104 tooth flywheel) 1.4kW Tilton type starter motor

LMS1068

Type Weight Voltage Polarity Power
Hitachi WFGR 4.7Kg / 10.36lbs 12V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 9 29mm
Chevrolet V8 (104 tooth flywheel) 2.0kW Tilton type high performance starter motor

LMS1315

Type Weight Voltage Polarity Power
Hitachi WFGR 4.9Kg / 10.80lbs 12V Both 2.0kW
Rotation Pinion Teeth Pinion Dia
CW 9 29mm
Chevrolet V8 (105 | 109 tooth flywheel) 1.4kW Tilton type starter motor

LMS1060

Type Weight Voltage Polarity Power
Hitachi WFGR 4.7Kg / 10.36lbs 12V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 9 29mm
Chevrolet V8 (105 | 109 tooth flywheel) 2.0kW Tilton type high performance starter motor

LMS1314

Type Weight Voltage Polarity Power
Hitachi WFGR 4.9Kg / 10.80lbs 12V Both 2.0kW
Rotation Pinion Teeth Pinion Dia
CW 9 29mm
Chevrolet V8 | 54-41062 (102 tooth ring gear) Tilton type starter motor

LMS1027

Type Weight Voltage Polarity Power
Hitachi WFGR 4.9Kg / 10.80lbs 12V Both 2.0kW
Rotation Pinion Teeth Pinion Dia
CCW 9 25mm
Chevrolet V8 | Porsche G50 high performance starter motor

LMS772

Type Weight Voltage Polarity Power
Denso PMGR 3.8Kg / 8.38lbs 12V -VE 2.0kW
Rotation Pinion Teeth Pinion Dia
CCW 10 28mm
Chevrolet V8 | Renault box | Lola T70 replica high torque starter motor

LMS948

Type Weight Voltage Polarity Power
Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 9 29mm
Chevrolet V8 | Tilton 54-41062 (102 tooth ring gear) super-duty starter motor

LMS1028

Type Weight Voltage Polarity Power
Denso OSGR 4.1Kg / 9.03lbs 12V Both 2.0kW
Rotation Pinion Teeth Pinion Dia
CCW 9 25mm
Chevrolet V8 parallel hole pad mount LH (motor underneath) 2.0kW super-duty starter motor

LMS526

Type Weight Voltage Polarity Power
Denso OSGR 4.1Kg / 9.03lbs 12V Both 2.0kW
Rotation Pinion Teeth Pinion Dia
CW 11 29mm
Chevrolet V8 parallel hole pad mount LH (motor underneath) 2.3kW super-duty starter motor

LMS527

Type Weight Voltage Polarity Power
Denso OSGR 5.9Kg / 13.01lbs 12V Both 2.3kW
Rotation Pinion Teeth Pinion Dia
CW 11 29mm
Chevrolet V8 small | big block (C1D2 | CSA) high performance starter motor

LMS916

Type Weight Voltage Polarity Power
Denso WFGR 4.2Kg / 9.26lbs 12V Both 2.2kW
Rotation Pinion Teeth Pinion Dia
CW 11 29mm
Chevrolet V8 small | big block high performance starter motor

LMS933

Type Weight Voltage Polarity Power
Denso WFGR 4.2Kg / 9.26lbs 12V Both 2.2kW
Rotation Pinion Teeth Pinion Dia
CW 11 29mm
Chevrolet V8 staggered mount (rotatable) LH - motor underneath high torque starter motor

LMS1324

Type Weight Voltage Polarity Power
Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW
Chevrolet V8 staggered mount (rotatable) RH - motor on top high torque starter motor

LMS927

Type Weight Voltage Polarity Power
Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 11 29mm
Chevrolet V8 thick lug | thin lug (rotatable) LH - motor underneath high torque starter motor

LMS1325

Type Weight Voltage Polarity Power
Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW
Chevrolet V8 thick lug | thin lug (rotatable) RH - motor on top high torque starter motor

LMS928

Type Weight Voltage Polarity Power
Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 11 29mm
Chevrolet Various 55A Rear Drive Dynator

LMDCHEV001-RD-LO

Amp Voltage Polarity B+ Position Pulley
55A 12V -VE Fixed LMP001
Chevrolet Various 55A Rear Drive Dynator (+VE Ground)

LMDCHEV001-RD-LO+VE

Amp Voltage Polarity B+ Position Pulley
55A 12V +VE Fixed LMP001
Chevrolet Various 55A Rear Drive Dynator (17mm V)

LMDCHEV001-17V-RD-LO

Amp Voltage Polarity B+ Position Pulley
55A 12V -VE Fixed LMP148
Chevrolet Various 55A Rear Drive Dynator (17mm V) (+VE Ground)

LMDCHEV001-17V-RD-LO+VE

Amp Voltage Polarity B+ Position Pulley
55A 12V +VE Fixed LMP148
Chevrolet Various 95A Rear Drive Dynator

LMDCHEV001-RD

Amp Voltage Polarity B+ Position Pulley
95A 12V -VE Fixed LMP001
Chevrolet Various 95A Rear Drive Dynator (+VE Ground)

LMDCHEV001-RD+VE

Amp Voltage Polarity B+ Position Pulley
95A 12V +VE Fixed LMP001

Type	Weight	Voltage	Polarity	Power
Denso OSGR *r	3.7Kg / 8.15lbs	12V	Both	1.4kW
CW	11	29mm

Type	Weight	Voltage	Polarity	Power
Denso OSGR	4.1Kg / 9.03lbs	12V	Both	2.0kW

Type	Weight	Voltage	Polarity	Power
Denso OSGR *r	3.7Kg / 8.15lbs	12V	Both	1.4kW
CW	11	29mm

Type	Weight	Voltage	Polarity	Power
Denso OSGR *r	3.7Kg / 8.15lbs	24V	Both	1.4kW
CW	11	29mm

Type	Weight	Voltage	Polarity	Power
Denso OSGR	4.1Kg / 9.03lbs	12V	Both	2.0kW
CW	11	29mm

Amp	Hand	Lugs	Type	Weight
170A	180°	3	Billet	3.9kg / 8.6lbs
12V	-VE	B+ / IG / L	Fixed	LMP001

Amp	Hand	Lugs	Type	Weight
95A	180°	3	Billet	3.9kg / 8.6lbs
12V	-VE	B+ / IG / L	Fixed	LMP001

Type	Weight	Voltage	Polarity	Power
Denso OSGR *r	3.7Kg / 8.15lbs	12V	Both	1.4kW
CW	10	37mm

Type	Weight	Voltage	Polarity	Power
Denso OSGR *r	3.7Kg / 8.15lbs	12V	Both	1.4kW
CW	9	29mm

Amp	Voltage	Polarity	B+ Position	Pulley
95A	12V	-VE	Fixed	LMP001

Amp	Voltage	Polarity	B+ Position	Pulley
95A	12V	+VE	Fixed	LMP001

Amp	Voltage	Polarity	B+ Position	Pulley
95A	6V	+VE	Fixed	LMP001

Amp	Voltage	Polarity	B+ Position	Pulley
95A	12V	-VE	Fixed	LMP001

Amp	Voltage	Polarity	B+ Position	Pulley
95A	12V	+VE	Fixed	LMP001

Amp	Voltage	Polarity	B+ Position	Pulley
95A	6V	+VE	Fixed	LMP001

Amp	Voltage	Polarity	B+ Position	Pulley
95A	6V	-VE	Fixed	LMP001

Amp	Voltage	Polarity	B+ Position	Pulley
95A	6V	-VE	Fixed	LMP001

Type	Weight	Voltage	Polarity	Power
Denso OSGR *r	3.7Kg / 8.15lbs	12V	Both	1.4kW
CW	9	29mm

Type	Weight	Voltage	Polarity	Power
Denso OSGR *r	4.1Kg / 9.03lbs	6V	Both	2.0kW
CW	9	29mm

Type	Weight	Voltage	Polarity	Power
Denso OSGR *r	3.7Kg / 8.15lbs	12V	Both	1.4kW
CW	9	25mm

Type	Weight	Voltage	Polarity	Power
Hitachi WFGR	4.7Kg / 10.36lbs	12V	Both	1.4kW
CW

Type	Weight	Voltage	Polarity	Power
Hitachi WFGR	4.9Kg / 10.80lbs	12V	Both	2.0kW
CW	9	25mm

Type	Weight	Voltage	Polarity	Power
Denso OSGR	3.7Kg / 8.15lbs	12V	Both	1.4kW
CW	11	29mm

Type	Weight	Voltage	Polarity	Power
Denso OSGR	4.1Kg / 9.03lbs	12V	Both	2.0kW
CW	11	29mm

Type	Weight	Voltage	Polarity	Power
Denso OSGR *r	3.7Kg / 8.15lbs	12V	Both	1.4kW
CW	11	29mm

Type	Weight	Voltage	Polarity	Power
Denso OSGR	4.1Kg / 9.03lbs	12V	Both	2.0kW
CW	11	29mm

Type	Weight	Voltage	Polarity	Power
Hitachi PMGR	3.0Kg / 6.61lbs	12V	-VE	1.4kW
CW

Type	Weight	Voltage	Polarity	Power
Denso OSGR	4.1Kg / 9.03lbs	12V	Both	2.0kW
CW	13	40mm

Type	Weight	Voltage	Polarity	Power
Hitachi WFGR	4.7Kg / 10.36lbs	12V	Both	1.4kW
CW	9	29mm

Type	Weight	Voltage	Polarity	Power
Hitachi WFGR	4.9Kg / 10.80lbs	12V	Both	2.0kW
CW	9	29mm

Type	Weight	Voltage	Polarity	Power
Hitachi WFGR	4.7Kg / 10.36lbs	12V	Both	1.4kW
CW	9	29mm

Type	Weight	Voltage	Polarity	Power
Hitachi WFGR	4.9Kg / 10.80lbs	12V	Both	2.0kW
CW	9	29mm

Type	Weight	Voltage	Polarity	Power
Hitachi WFGR	4.9Kg / 10.80lbs	12V	Both	2.0kW
CCW	9	25mm

Type	Weight	Voltage	Polarity	Power
Denso PMGR	3.8Kg / 8.38lbs	12V	-VE	2.0kW
CCW	10	28mm

Type	Weight	Voltage	Polarity	Power
Denso OSGR *r	3.7Kg / 8.15lbs	12V	Both	1.4kW
CW	9	29mm

Type	Weight	Voltage	Polarity	Power
Denso OSGR	4.1Kg / 9.03lbs	12V	Both	2.0kW
CCW	9	25mm

Type	Weight	Voltage	Polarity	Power
Denso OSGR	4.1Kg / 9.03lbs	12V	Both	2.0kW
CW	11	29mm

Type	Weight	Voltage	Polarity	Power
Denso OSGR	5.9Kg / 13.01lbs	12V	Both	2.3kW
CW	11	29mm

Type	Weight	Voltage	Polarity	Power
Denso WFGR	4.2Kg / 9.26lbs	12V	Both	2.2kW
CW	11	29mm

Type	Weight	Voltage	Polarity	Power
Denso WFGR	4.2Kg / 9.26lbs	12V	Both	2.2kW
CW	11	29mm

Type	Weight	Voltage	Polarity	Power
Denso OSGR *r	3.7Kg / 8.15lbs	12V	Both	1.4kW

Type	Weight	Voltage	Polarity	Power
Denso OSGR *r	3.7Kg / 8.15lbs	12V	Both	1.4kW
CW	11	29mm

Type	Weight	Voltage	Polarity	Power
Denso OSGR *r	3.7Kg / 8.15lbs	12V	Both	1.4kW

Type	Weight	Voltage	Polarity	Power
Denso OSGR *r	3.7Kg / 8.15lbs	12V	Both	1.4kW
CW	11	29mm

Amp	Voltage	Polarity	B+ Position	Pulley
55A	12V	-VE	Fixed	LMP001

Amp	Voltage	Polarity	B+ Position	Pulley
55A	12V	+VE	Fixed	LMP001

Amp	Voltage	Polarity	B+ Position	Pulley
55A	12V	-VE	Fixed	LMP148

Amp	Voltage	Polarity	B+ Position	Pulley
55A	12V	+VE	Fixed	LMP148

Amp	Voltage	Polarity	B+ Position	Pulley
95A	12V	-VE	Fixed	LMP001

Amp	Voltage	Polarity	B+ Position	Pulley
95A	12V	+VE	Fixed	LMP001

Engineered Solutions to Real Problems●OE Quality, No Compromise

Alternators

High output, low rpm, superior reliability, application specific 'fit and forget' direct replacement OE units.

More info

Dynators

Alternators disguised as dynamos. Authentic and reliable: the perfect upgrade.

More info

Starter Motors

Bespoke, OE quality, high torque, gear reduction and durable. Ideal for hostile environments, or the ultimate upgrade.

More info

Spares

WOSP manufacture and stock a complete range of spares including pulleys, brackets, kits, tensioners, pinions, regulators and looms.

More info

Dynators

PRODUCT FILTER

PRODUCT CATEGORY

Engineered Solutions to Real Problems●OE Quality, No Compromise

Alternators

Dynators

Starter Motors

Spares
