Dynators

PRODUCT FILTER

Lucas 10 tooth, 3 bolt, 4.5 inertia replacement slimline starter motor

LMS269-10-3

Type Weight Voltage Polarity Power
Hitachi PMGR 3.0Kg / 6.61lbs 12V -VE 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 10 29mm
Lucas 10 tooth, 3 bolt, 4.5 inertia replacement slimline starter motor (+VE Ground)

LMS269-10-3+VE

Type Weight Voltage Polarity Power
Hitachi PMGR 3.0Kg / 6.61lbs 12V +VE 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 10 29mm
Lucas 11AC 2-lug 120A Alternator

LMA459-LO

Amp Hand Lugs Type Weight
120A R/H 2 Billet 5.3Kg / 11.71lbs
Voltage Polarity Connection Pulley
12V -VE B+ / Lamp / W LMP001
Lucas 11AC 2-lug 175A Alternator

LMA459

Amp Hand Lugs Type Weight
175A R/H 2 Billet 5.3Kg / 11.71lbs
Voltage Polarity Connection Pulley
12V -VE B+ / Lamp / W LMP001
Lucas 11AC 2-lug 180A Alternator

LMA360-LO

Amp Hand Lugs Type Weight
180A R/H 2 Billet 6.9Kg / 15.21lbs
Voltage Polarity Connection Pulley
12V -VE B+ / Lamp / W LMP001
Lucas 11AC 2-lug 240A Alternator

LMA360

Amp Hand Lugs Type Weight
240A R/H 2 Billet 6.9Kg / 15.21lbs
Voltage Polarity Connection Pulley
12V -VE B+ / Lamp / W LMP001
Lucas 11AC 2-lug 250A Alternator

LMA459-MHO

Amp Hand Lugs Type Weight
250A R/H 2 Billet 5.3Kg / 11.71lbs
Voltage Polarity Connection Pulley
12V -VE B+ / Lamp / W LMP001
Lucas 11AC 2-lug 290A Alternator

LMA360-MHO

Amp Hand Lugs Type Weight
290A R/H 2 Billet 6.9Kg / 15.21lbs
Voltage Polarity Connection Pulley
12V -VE B+ / Lamp / W LMP001
Lucas 11AC 2-lug 390A Alternator

LMA360-HO

Amp Hand Lugs Type Weight
390A R/H 2 Billet 6.9Kg / 15.21lbs
Voltage Polarity Connection Pulley
12V -VE B+ / Lamp / W LMP001
Lucas 11AC 2-lug 95A Alternator (61mm Pulley)

LMA359-S1

Amp Hand Lugs Type Weight
95A R/H 2 Billet 3.9Kg / 8.61lbs
Voltage Polarity Connection Pulley
12V -VE B+ / Lamp / W LMP024
Lucas 11AC 2-lug 95A Alternator (68mm Pulley)

LMA359

Amp Hand Lugs Weight Voltage
95A R/H 2 3.9Kg / 8.61lbs 12V
Polarity Connection Pulley
-VE B+ / Lamp / W LMP031
Lucas 11AC 2-lug Alternator

LMA459-HO

Amp Hand Lugs Type Weight
320A R/H 2 Billet 5.3Kg / 11.71lbs
Voltage Polarity Connection Pulley
12V -VE B+ / Lamp / W LMP001
Lucas 11AC 2-lug S1 Alternator

LMA459-S1

Amp Hand Lugs Type Weight
175A R/H 2 Billet 5.3Kg / 11.71lbs
Voltage Polarity Connection Pulley
12V -VE B+ / Lamp / W LMP024
Lucas 11AC 80A Alternator (2-Lug)

LMA011AC-80

Amp Hand Lugs Type Weight
80A R/H 2 Cast 4.4Kg / 9.70lbs
Voltage Polarity Connection B+ Position Pulley
12V -VE B+ / Lamp Fixed LMP004
Lucas 11AC 80A Alternator (2-Lug) (+VE Ground)

LMA011AC-80+VE

Amp Hand Lugs Type Weight
80A R/H 2 Cast 4.4Kg / 9.70lbs
Voltage Polarity Connection B+ Position Pulley
12V +VE B+ / Lamp Fixed LMP004
Lucas 11AC 80A Alternator (3-Lug)

LMA012-80

Amp Hand Lugs Type Weight
80A R/H 3 Cast 4.5Kg / 9.92lbs
Voltage Polarity Connection B+ Position Pulley
12V -VE B+ / Lamp Fixed LMP004
Lucas 11AC 80A Alternator (3-Lug) (+VE Ground)

LMA012-80+VE

Amp Hand Lugs Type Weight
80A R/H 3 Cast 4.5Kg / 9.92lbs
Voltage Polarity Connection B+ Position Pulley
12V +VE B+ / Lamp Fixed LMP004
Lucas 9 tooth, 2 bolt, 4.5 inertia replacement slimline starter motor

LMS269-9-2

Type Weight Voltage Polarity Power
Hitachi PMGR 3.0Kg / 6.61lbs 12V -VE 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 9 29mm
Lucas 9 tooth, 2 bolt, 4.5 inertia replacement slimline starter motor (+VE Ground)

LMS269-9-2+VE

Type Weight Voltage Polarity Power
Hitachi PMGR 3.0Kg / 6.61lbs 12V +VE 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 9 29mm
Lucas 9 tooth, 3 bolt, 4.5 inertia replacement slimline starter motor

LMS269-9-3

Type Weight Voltage Polarity Power
Hitachi PMGR 3.0Kg / 6.61lbs 12V -VE 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 9 29mm
Lucas 9 tooth, 3 bolt, 4.5 inertia replacement slimline starter motor (+VE Ground)

LMS269-9-3+VE

Type Weight Voltage Polarity Power
Hitachi PMGR 3.0Kg / 6.61lbs 12V +VE 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 9 29mm

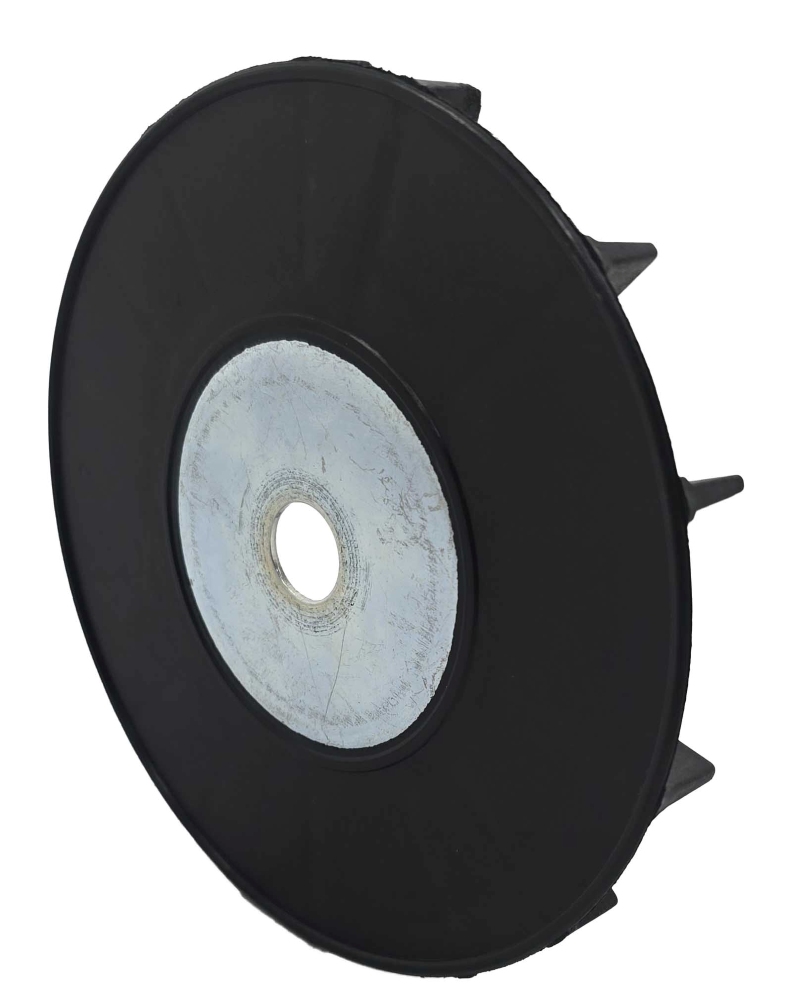

Lucas A127 bi-directional alternator fan

LMF010
Lucas A127 clockwise alternator fan

LMF002
Lucas A127 counter-clockwise alternator fan

LMF003
Lucas A127 regulator

LMAR10
Lucas A127IM regulator

LMAR06
Lucas ACR | A133 bi-directional alternator fan

LMF011
Lucas ACR alternator fan

LMF001
Lucas ACR euro plug 3-pin plug | connector

LML04
Lucas ACR regulator

LMAR09
Lucas bulkhead push button solenoid (2x stud 1x stud lucar)

LMRS012
Lucas bulkhead push button solenoid (3x stud)

LMRS011
Lucas bulkhead push button solenoid (4x stud)

LMRS013
Lucas bulkhead solenoid (2x stud 1x stud lucar)

LMRS007
Lucas bulkhead solenoid (2x stud 2x stud lucar)

LMRS008
Lucas bulkhead solenoid to suit Ford

LMRS036
Lucas C35A Type 50A Dynator

LMDC35-A

Amp Voltage Polarity B+ Position Pulley
50A 12V -VE Fixed Uses Original
Lucas C35A Type 50A Dynator (+VE Ground)

LMDC35-A+VE

Amp Voltage Polarity B+ Position Pulley
50A 12V +VE Fixed Uses Original
Lucas C39 (Straight Tacho Drive) Type 50A Dynator

LMDC39-T

Amp Voltage Polarity B+ Position Pulley
50A 12V -VE Fixed LMP101
Lucas C39 (Straight Tacho Drive) Type 50A Dynator (+VE Ground)

LMDC39-T+VE

Amp Voltage Polarity B+ Position Pulley
50A 12V +VE Fixed LMP101
Lucas C39 MG Type 50A Dynator

LMDC39-MG

Amp Voltage Polarity B+ Position Pulley
50A 12V -VE Fixed LMP101
Lucas C39 MG Type 50A Dynator (+VE Ground)

LMDC39-MG+VE

Amp Voltage Polarity B+ Position Pulley
50A 12V -VE Fixed LMP101
Lucas C39 Type 50A Dynator (Studs)

LMDC39

Amp Voltage Polarity B+ Position Pulley
50A 12V -VE Fixed LMP001
Lucas C39 Type 50A Dynator (Studs) (+VE Ground)

LMDC39+VE

Amp Voltage Polarity B+ Position Pulley
50A 12V +VE Fixed LMP001
Lucas C40 (90° 'Agricultural' Tacho Drive) Type 50A Dynator

LMDC40-T-90

Amp Voltage Polarity B+ Position Pulley
50A 12V -VE Fixed LMP001
Lucas C40 (90° 'Agricultural' Tacho Drive) Type 50A Dynator (+VE Ground)

LMDC40-T-90+VE

Amp Voltage Polarity B+ Position Pulley
50A 12V +VE Fixed LMP001
Lucas C40 Left hand Long Type 50A Dynator

LMDC40-L-LH

Amp Hand Lugs Type Weight
50A LH 3 Denso 3.1kg / 6.8lbs
Voltage Polarity B+ Position Pulley
12V -VE Fixed LMP001
Lucas C40 Left hand Long Type 50A Dynator (+VE Ground)

LMDC40-L-LH+VE

Amp Hand Lugs Type Weight
50A LH 3 Denso 3.1kg / 6.8lbs
Voltage Polarity B+ Position Pulley
12V +VE Fixed LMP001
Lucas C40 Left hand Type 50A Dynator

LMDC40-LH

Amp Hand Lugs Type Weight
50A LH 3 Denso 3.1kg / 6.8lbs
Voltage Polarity B+ Position Pulley
12V -VE Fixed LMP001
Lucas C40 Left hand Type 50A Dynator (+VE Ground)

LMDC40-LH+VE

Amp Hand Lugs Type Weight
50A LH 3 Denso 3.1kg / 6.8lbs
Voltage Polarity B+ Position Pulley
12V +VE Fixed LMP001

Type	Weight	Voltage	Polarity	Power
Hitachi PMGR	3.0Kg / 6.61lbs	12V	-VE	1.4kW
CW	10	29mm

Type	Weight	Voltage	Polarity	Power
Hitachi PMGR	3.0Kg / 6.61lbs	12V	+VE	1.4kW
CW	10	29mm

Amp	Hand	Lugs	Type	Weight
120A	R/H	2	Billet	5.3Kg / 11.71lbs
12V	-VE	B+ / Lamp / W	LMP001

Amp	Hand	Lugs	Type	Weight
175A	R/H	2	Billet	5.3Kg / 11.71lbs
12V	-VE	B+ / Lamp / W	LMP001

Amp	Hand	Lugs	Type	Weight
180A	R/H	2	Billet	6.9Kg / 15.21lbs
12V	-VE	B+ / Lamp / W	LMP001

Amp	Hand	Lugs	Type	Weight
240A	R/H	2	Billet	6.9Kg / 15.21lbs
12V	-VE	B+ / Lamp / W	LMP001

Amp	Hand	Lugs	Type	Weight
250A	R/H	2	Billet	5.3Kg / 11.71lbs
12V	-VE	B+ / Lamp / W	LMP001

Amp	Hand	Lugs	Type	Weight
290A	R/H	2	Billet	6.9Kg / 15.21lbs
12V	-VE	B+ / Lamp / W	LMP001

Amp	Hand	Lugs	Type	Weight
390A	R/H	2	Billet	6.9Kg / 15.21lbs
12V	-VE	B+ / Lamp / W	LMP001

Amp	Hand	Lugs	Type	Weight
95A	R/H	2	Billet	3.9Kg / 8.61lbs
12V	-VE	B+ / Lamp / W	LMP024

Amp	Hand	Lugs	Weight	Voltage
95A	R/H	2	3.9Kg / 8.61lbs	12V
-VE	B+ / Lamp / W	LMP031

Amp	Hand	Lugs	Type	Weight
320A	R/H	2	Billet	5.3Kg / 11.71lbs
12V	-VE	B+ / Lamp / W	LMP001

Amp	Hand	Lugs	Type	Weight
175A	R/H	2	Billet	5.3Kg / 11.71lbs
12V	-VE	B+ / Lamp / W	LMP024

Amp	Hand	Lugs	Type	Weight
80A	R/H	2	Cast	4.4Kg / 9.70lbs
12V	-VE	B+ / Lamp	Fixed	LMP004

Amp	Hand	Lugs	Type	Weight
80A	R/H	2	Cast	4.4Kg / 9.70lbs
12V	+VE	B+ / Lamp	Fixed	LMP004

Amp	Hand	Lugs	Type	Weight
80A	R/H	3	Cast	4.5Kg / 9.92lbs
12V	-VE	B+ / Lamp	Fixed	LMP004

Amp	Hand	Lugs	Type	Weight
80A	R/H	3	Cast	4.5Kg / 9.92lbs
12V	+VE	B+ / Lamp	Fixed	LMP004

Type	Weight	Voltage	Polarity	Power
Hitachi PMGR	3.0Kg / 6.61lbs	12V	-VE	1.4kW
CW	9	29mm

Type	Weight	Voltage	Polarity	Power
Hitachi PMGR	3.0Kg / 6.61lbs	12V	+VE	1.4kW
CW	9	29mm

Type	Weight	Voltage	Polarity	Power
Hitachi PMGR	3.0Kg / 6.61lbs	12V	-VE	1.4kW
CW	9	29mm

Type	Weight	Voltage	Polarity	Power
Hitachi PMGR	3.0Kg / 6.61lbs	12V	+VE	1.4kW
CW	9	29mm

Amp	Voltage	Polarity	B+ Position	Pulley
50A	12V	-VE	Fixed	Uses Original

Amp	Voltage	Polarity	B+ Position	Pulley
50A	12V	+VE	Fixed	Uses Original

Amp	Voltage	Polarity	B+ Position	Pulley
50A	12V	-VE	Fixed	LMP101

Amp	Voltage	Polarity	B+ Position	Pulley
50A	12V	+VE	Fixed	LMP101

Amp	Voltage	Polarity	B+ Position	Pulley
50A	12V	-VE	Fixed	LMP101

Amp	Voltage	Polarity	B+ Position	Pulley
50A	12V	-VE	Fixed	LMP101

Amp	Voltage	Polarity	B+ Position	Pulley
50A	12V	-VE	Fixed	LMP001

Amp	Voltage	Polarity	B+ Position	Pulley
50A	12V	+VE	Fixed	LMP001

Amp	Voltage	Polarity	B+ Position	Pulley
50A	12V	-VE	Fixed	LMP001

Amp	Voltage	Polarity	B+ Position	Pulley
50A	12V	+VE	Fixed	LMP001

Amp	Hand	Lugs	Type	Weight
50A	LH	3	Denso	3.1kg / 6.8lbs
12V	-VE	Fixed	LMP001

Amp	Hand	Lugs	Type	Weight
50A	LH	3	Denso	3.1kg / 6.8lbs
12V	+VE	Fixed	LMP001

Amp	Hand	Lugs	Type	Weight
50A	LH	3	Denso	3.1kg / 6.8lbs
12V	-VE	Fixed	LMP001

Amp	Hand	Lugs	Type	Weight
50A	LH	3	Denso	3.1kg / 6.8lbs
12V	+VE	Fixed	LMP001
