Ford Coyote V8 | F-Series | Mustang high torque starter motor

LMS825

Type Weight Voltage Polarity Power
Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 12 32mm
Ford Coyote V8 | F-Series | Mustang O.E starter motor

LMS882

Type Weight Voltage Polarity Power
Denso PMGR 3.2Kg / 7.05lbs 12V -VE 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 12 32mm
Ford Crossflow | Kent | BDA (110 tooth ring gear) 10 tooth | 2 bolt high torque starter motor

LMS008-10-2

Type Weight Voltage Polarity Power
Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 10 29mm
Ford Crossflow | Kent | BDA (110 tooth ring gear) 10 tooth | 2 bolt WOSP Axial starter motor

LMS008-10-2-WAX

Type Weight Voltage Polarity Power
WOSP Axial ( WAX ) 3.9Kg / 8.60lbs 12V Both 2.2kW
Rotation Pinion Teeth Pinion Dia
CW 10 29mm
Ford Crossflow | Kent | BDA (110 tooth ring gear) 10 tooth | 3 bolt high torque starter motor

LMS008-10-3

Type Weight Voltage Polarity Power
Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 10 29mm
Ford Crossflow | Kent | BDA (110 tooth ring gear) 10 tooth | 3 bolt WOSP Axial starter motor

LMS008-10-3-WAX

Type Weight Voltage Polarity Power
WOSP Axial ( WAX ) 3.9Kg / 8.60lbs 12V Both 2.2kW
Rotation Pinion Teeth Pinion Dia
CW 10 29mm
Ford Crossflow | Kent | BDA (110 tooth ring gear) 9 tooth | 2 bolt high torque starter motor

LMS008-9-2

Type Weight Voltage Polarity Power
Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 9 29mm
Ford Crossflow | Kent | BDA (110 tooth ring gear) 9 tooth | 2 bolt WOSP Axial starter motor

LMS008-9-2-WAX

Type Weight Voltage Polarity Power
WOSP Axial ( WAX ) 3.9Kg / 8.60lbs 12V Both 2.2kW
Rotation Pinion Teeth Pinion Dia
CW 9 29mm
Ford Crossflow | Kent | BDA (110 tooth ring gear) 9 tooth | 3 bolt high torque starter motor

LMS008-9-3

Type Weight Voltage Polarity Power
Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 9 29mm
Ford Crossflow | Kent | BDA (110 tooth ring gear) 9 tooth | 3 bolt WOSP Axial starter motor

LMS008-9-3-WAX

Type Weight Voltage Polarity Power
WOSP Axial ( WAX ) 3.9Kg / 8.60lbs 12V Both 2.2kW
Rotation Pinion Teeth Pinion Dia
CW 9 29mm
Ford Crossflow | Kent | BDA (110 tooth ring gear) high performance starter motor

LMS1295

Type Weight Voltage Polarity Power
Denso PMGR 3.8Kg / 8.38lbs 12V -VE 2.0kW
Rotation Pinion Teeth Pinion Dia
CW 9 29mm
Ford Crossflow | Pre X-Flow (104 tooth ring gear) high torque starter motor

LMS1050

Type Weight Voltage Polarity Power
Denso OSGR 3.7Kg / 8.15lbs 12V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 10 31mm
Ford CVH | Zetec - MT75 (110 tooth ring gear) high torque starter motor

LMS129

Type Weight Voltage Polarity Power
Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 10 29mm
Ford CVH | Zetec (RS bell housing) Raceline sump slimline starter motor

LMS587

Type Weight Voltage Polarity Power
Hitachi PMGR 3.0Kg / 6.61lbs 12V -VE 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 10 27mm
Ford CVH | Zetec | (MT75 transmission) Raceline sump high performance starter motor

LMS790

Type Weight Voltage Polarity Power
Denso PMGR 3.8Kg / 8.38lbs 12V -VE 2.0kW
Ford CVH | Zetec | Cosworth (MT75 transmission) Raceline sump slimline starter motor

LMS589

Type Weight Voltage Polarity Power
Hitachi PMGR 3.0Kg / 6.61lbs 12V -VE 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 10 27mm
Ford CVH | Zetec | Cosworth (MT75 transmission) slimline starter motor

LMS588

Type Weight Voltage Polarity Power
Hitachi PMGR 3.0Kg / 6.61lbs 12V -VE 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 10 27mm

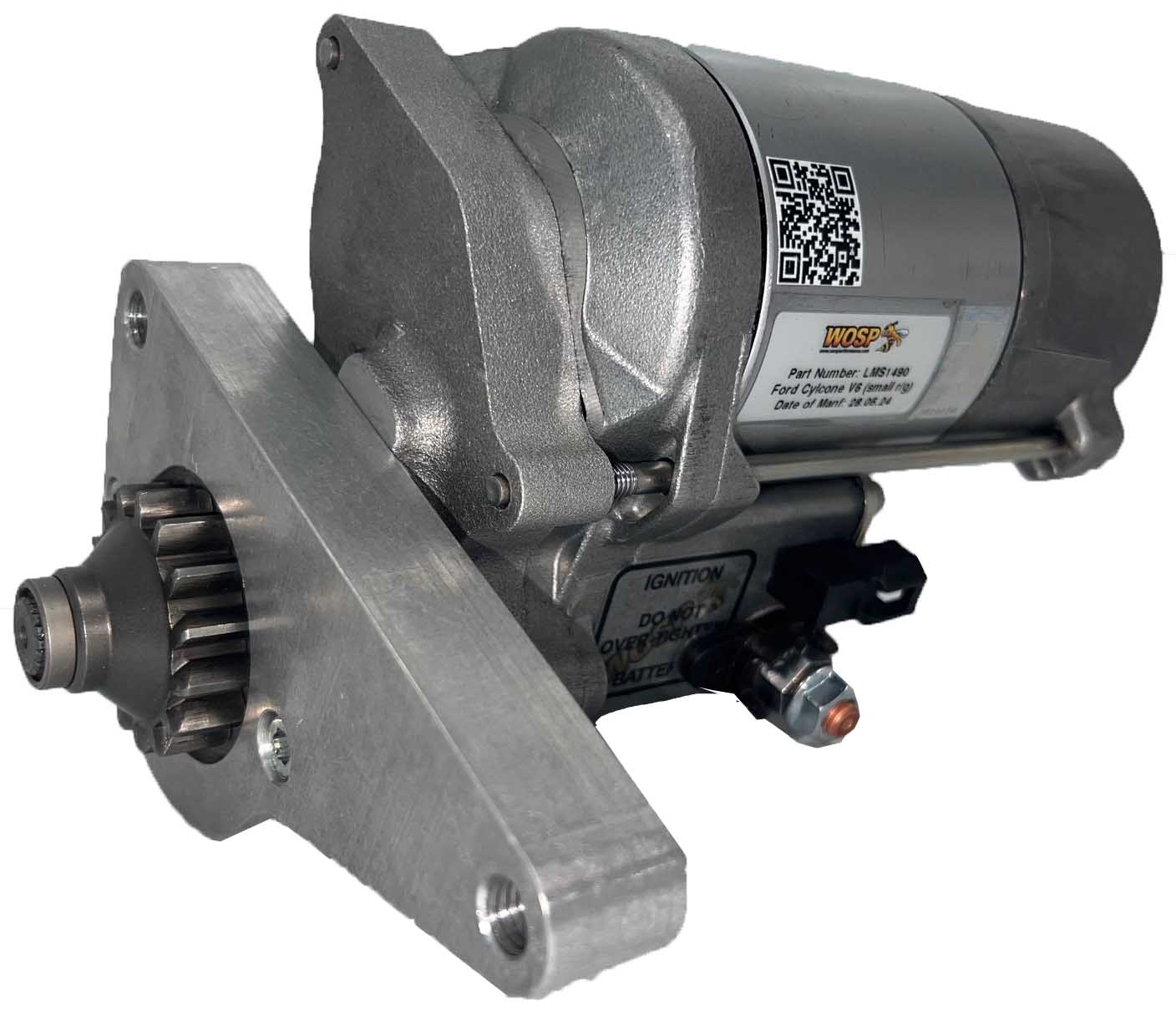

Ford Cyclone V6 (Small ring gear) super-duty starter motor

LMS1490

Type Weight Voltage Polarity Power
Denso OSGR 4.1Kg / 9.03lbs 12V Both 2.0kW
Rotation
CW
Ford Cyclone V6 | Ford Mustang | F-150 & Transit 150 super-duty starter motor

LMS1478

Type Weight Voltage Polarity Power
Denso OSGR 4.1Kg / 9.03lbs 12V Both 2.0kW
Rotation Pinion Teeth Pinion Dia
CW 13 34mm
Ford D Series Truck 6cyl 12 Volt heavy duty starter motor

LMS5046

Type Weight Voltage Polarity Power
Denso PLGR 8.0Kg / 17.64lbs 12V Both 3kW
Ford D Series Truck 6cyl 24 Volt heavy duty starter motor

LMS5047

Type Voltage Polarity Power
Denso PLGR 24V Both 4.8kW
Ford Duratec (104 tooth (6mm offset) ring gear) high torque starter motor

LMS458

Type Weight Voltage Polarity Power
Denso OSGR 3.7Kg / 8.15lbs 12V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 13 40mm
Ford Duratec (104 tooth ring gear) high torque starter motor

LMS457

Type Weight Voltage Polarity Power
Denso OSGR 3.7Kg / 8.15lbs 12V Both 1.4kW
Ford Duratec (116 tooth ring gear) high torque starter motor

LMS344

Type Weight Voltage Polarity Power
Denso OSGR 3.7Kg / 8.15lbs 12V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 11 34mm
Ford Duratec (Mazda 112 tooth ring gear) high torque starter motor

LMS512

Type Weight Voltage Polarity Power
Denso OSGR 3.7Kg / 8.15lbs 12V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 11 34mm
Ford Duratec (Mazda 112 tooth ring gear) super-duty starter motor

LMS512-2.0

Type Weight Voltage Polarity Power
Denso OSGR 4.1Kg / 9.03lbs 12V Both 2.0kW
Rotation Pinion Teeth Pinion Dia
CW 11 34mm
Ford Duratec 105A Alternator (bottom inlet)

LMA277-HO

Amp Hand Lugs Type Weight
105A 180° 2 Cast 3.0Kg / 6.61lbs
Voltage Polarity Connection Pulley
12V -VE B+ / L (optional) LMP071
Ford Duratec 105A Alternator (exhaust side)

LMA278-HO

Amp Hand Lugs Type Weight
105A 180° 2 Cast 3.0Kg / 6.61lbs
Voltage Polarity Connection Pulley
12V -VE B+ / L (optional) LMP013
Ford Duratec 50A Alternator (bottom inlet)

LMA233

Amp Hand Lugs Type Weight
50A 180° 2 Cast 2.7Kg / 5.95lbs
Voltage Polarity Connection Pulley
12V -VE B+ / IG / L LMP071
Ford Duratec 50A Alternator (exhaust side)

LMA232

Amp Hand Lugs Type Weight
50A 180° 2 Cast 2.7Kg / 5.95lbs
Voltage Polarity Connection Pulley
12V -VE B+ / IG / L LMP013
Ford Duratec 70A Alternator (bottom inlet)

LMA277

Amp Hand Lugs Type Weight
70A 180° 2 Cast 3.0Kg / 6.61lbs
Voltage Polarity Connection Pulley
12V -VE B+ / L (optional) LMP071
Ford Duratec 70A Alternator (exhaust side)

LMA278

Amp Hand Lugs Type Weight
70A 180° 2 Cast 3.0Kg / 6.61lbs
Voltage Polarity Connection Pulley
12V -VE B+ / L (optional) LMP013
Ford Duratec 95A Alternator (bottom inlet)

LMA239

Amp Hand Lugs Type Weight
95A R/H 2 Cast 4.1Kg / 9.04lbs
Voltage Polarity Connection Pulley
12V -VE B+ / Lamp LMP013

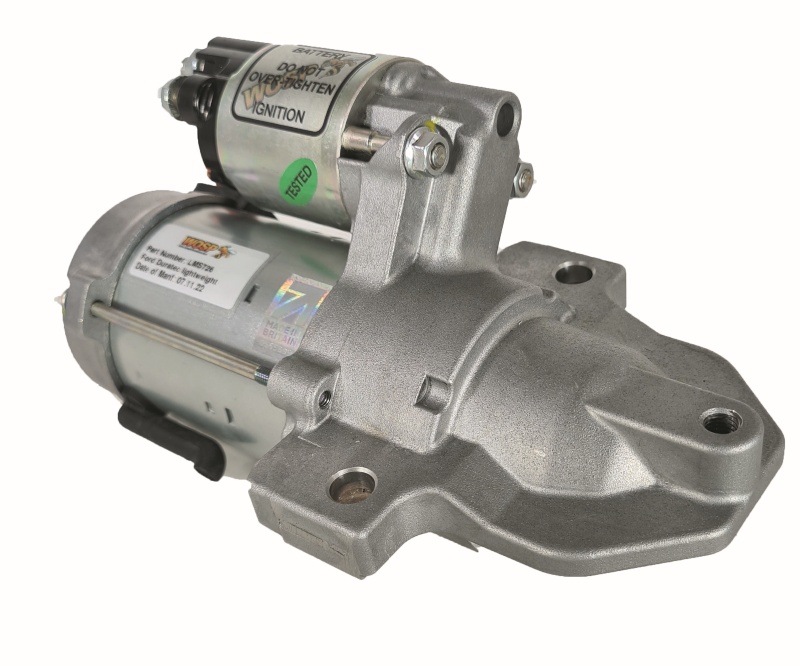

Ford Duratec high performance Lightweight starter motor

LMS726

Type Weight Voltage Polarity Power
Denso PMGR 3.2Kg / 7.05lbs 12V -VE 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 11 34mm
Ford Duratec high torque starter motor

LMS190

Type Weight Voltage Polarity Power
Denso OSGR 3.7Kg / 8.15lbs 12V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 11 34mm
Ford Duratec Lower Inlet Side 120A Alternator

LMA311-LO

Amp Hand Lugs Type Weight
120A PAD 3 Cast 5.3Kg / 11.71lbs
Voltage Polarity Connection Pulley
12V -VE B+ / Lamp LMP217
Ford Duratec Lower Inlet Side 175A Alternator

LMA311

Amp Hand Lugs Type Weight
175A PAD 3 Cast 5.3Kg / 11.71lbs
Voltage Polarity Connection Pulley
12V -VE B+ / Lamp LMP217
Ford Duratec Lower Inlet Side 250A Alternator

LMA311-MHO

Amp Hand Lugs Type Weight
250A PAD 3 Cast 5.3Kg / 11.71lbs
Voltage Polarity Connection Pulley
12V -VE B+ / Lamp LMP217
Ford Duratec Lower Inlet Side 320A Alternator

LMA311-HO

Amp Hand Lugs Type Weight
320A PAD 3 Cast 5.3Kg / 11.71lbs
Voltage Polarity Connection Pulley
12V -VE B+ / Lamp LMP217
Ford Duratec Lower Inlet Side Ecu Governed 120A Alternator

LMA311-ECU-LO

Amp Hand Lugs Type Weight
120A PAD 3 Cast 5.3Kg / 11.71lbs
Voltage Polarity Connection Pulley
12V -VE B+ / FR / SIG / S LMP217
Ford Duratec Lower Inlet Side Ecu Governed 175A Alternator

LMA311-ECU

Amp Hand Lugs Type Weight
175A PAD 3 Cast 5.3Kg / 11.71lbs
Voltage Polarity Connection Pulley
12V -VE B+ / FR / SIG / S LMP217
Ford Duratec Lower Inlet Side Ecu Governed 250A Alternator

LMA311-ECU-MHO

Amp Hand Lugs Type Weight
250A PAD 3 Cast 5.3Kg / 11.71lbs
Voltage Polarity Connection Pulley
12V -VE B+ / FR / SIG / S LMP217
Ford Duratec Lower Inlet Side Ecu Governed 320A Alternator

LMA311-ECU-HO

Amp Hand Lugs Type Weight
320A PAD 3 Cast 5.3Kg / 11.71lbs
Voltage Polarity Connection Pulley
12V -VE B+ / FR / SIG / S LMP217
Ford Duratec super-duty starter motor

LMS1080

Type Weight Voltage Polarity Power
Denso OSGR 4.1Kg / 9.03lbs 12V Both 2.0kW
Ford Duratec 'Various' Exhaust Side 170A Alternator

LMA479-HO

Amp Hand Type Weight Voltage
170A Pad Billet 3.9Kg / 8.61lbs 12V
Polarity Connection Pulley
-VE B+ / Lamp LMP088-15
Ford Duratec 'Various' Exhaust Side 170A Self Exciting Alternator

LMA479-HO-SE

Amp Hand Type Weight Voltage
170A Pad Billet 3.9Kg / 8.61lbs 12V
Polarity Connection Pulley
-VE B+ LMP088-15
Ford Duratec 'Various' Exhaust Side 180A ECU Governed Alternator

LMA316-LO-PWM

Amp Hand Type Weight Voltage
180A PAD Cast 6.9Kg / 15.21lbs 12V
Polarity Connection Pulley
-VE B+ / S SIG FR LMP015-17
Ford Duratec 'Various' Exhaust Side 180A Self Exciting Alternator

LMA316-LO-SE

Amp Hand Type Weight Voltage
180A PAD Cast 6.9Kg / 15.21lbs 12V
Polarity Connection Pulley
-VE B+ LMP015-17
Ford Duratec 'Various' Exhaust Side 240A Alternator

LMA316

Amp Hand Type Weight Voltage
240A PAD Cast 6.9Kg / 15.21lbs 12V
Polarity Connection Pulley
-VE B+ / Lamp LMP015-17
Ford Duratec 'Various' Exhaust Side 240A ECU Governed Alternator

LMA316-PWM

Amp Hand Type Weight Voltage
240A PAD Cast 6.9Kg / 15.21lbs 12V
Polarity Connection Pulley
-VE B+ / S SIG FR LMP015-17

Type	Weight	Voltage	Polarity	Power
Denso OSGR *r	3.7Kg / 8.15lbs	12V	Both	1.4kW
CW	12	32mm

Type	Weight	Voltage	Polarity	Power
Denso PMGR	3.2Kg / 7.05lbs	12V	-VE	1.4kW
CW	12	32mm

Type	Weight	Voltage	Polarity	Power
Denso OSGR *r	3.7Kg / 8.15lbs	12V	Both	1.4kW
CW	10	29mm

Type	Weight	Voltage	Polarity	Power
WOSP Axial ( WAX )	3.9Kg / 8.60lbs	12V	Both	2.2kW
CW	10	29mm

Type	Weight	Voltage	Polarity	Power
Denso OSGR *r	3.7Kg / 8.15lbs	12V	Both	1.4kW
CW	10	29mm

Type	Weight	Voltage	Polarity	Power
WOSP Axial ( WAX )	3.9Kg / 8.60lbs	12V	Both	2.2kW
CW	10	29mm

Type	Weight	Voltage	Polarity	Power
Denso OSGR *r	3.7Kg / 8.15lbs	12V	Both	1.4kW
CW	9	29mm

Type	Weight	Voltage	Polarity	Power
WOSP Axial ( WAX )	3.9Kg / 8.60lbs	12V	Both	2.2kW
CW	9	29mm

Type	Weight	Voltage	Polarity	Power
Denso OSGR *r	3.7Kg / 8.15lbs	12V	Both	1.4kW
CW	9	29mm

Type	Weight	Voltage	Polarity	Power
WOSP Axial ( WAX )	3.9Kg / 8.60lbs	12V	Both	2.2kW
CW	9	29mm

Type	Weight	Voltage	Polarity	Power
Denso PMGR	3.8Kg / 8.38lbs	12V	-VE	2.0kW
CW	9	29mm

Type	Weight	Voltage	Polarity	Power
Denso OSGR	3.7Kg / 8.15lbs	12V	Both	1.4kW
CW	10	31mm

Type	Weight	Voltage	Polarity	Power
Denso OSGR *r	3.7Kg / 8.15lbs	12V	Both	1.4kW
CW	10	29mm

Type	Weight	Voltage	Polarity	Power
Hitachi PMGR	3.0Kg / 6.61lbs	12V	-VE	1.4kW
CW	10	27mm

Type	Weight	Voltage	Polarity	Power
Denso PMGR	3.8Kg / 8.38lbs	12V	-VE	2.0kW

Type	Weight	Voltage	Polarity	Power
Hitachi PMGR	3.0Kg / 6.61lbs	12V	-VE	1.4kW
CW	10	27mm

Type	Weight	Voltage	Polarity	Power
Hitachi PMGR	3.0Kg / 6.61lbs	12V	-VE	1.4kW
CW	10	27mm

Type	Weight	Voltage	Polarity	Power
Denso OSGR	4.1Kg / 9.03lbs	12V	Both	2.0kW
CW

Type	Weight	Voltage	Polarity	Power
Denso OSGR	4.1Kg / 9.03lbs	12V	Both	2.0kW
CW	13	34mm

Type	Weight	Voltage	Polarity	Power
Denso PLGR	8.0Kg / 17.64lbs	12V	Both	3kW

Type	Voltage	Polarity	Power
Denso PLGR	24V	Both	4.8kW

Type	Weight	Voltage	Polarity	Power
Denso OSGR	3.7Kg / 8.15lbs	12V	Both	1.4kW
CW	13	40mm

Type	Weight	Voltage	Polarity	Power
Denso OSGR	3.7Kg / 8.15lbs	12V	Both	1.4kW

Type	Weight	Voltage	Polarity	Power
Denso OSGR	3.7Kg / 8.15lbs	12V	Both	1.4kW
CW	11	34mm

Type	Weight	Voltage	Polarity	Power
Denso OSGR	3.7Kg / 8.15lbs	12V	Both	1.4kW
CW	11	34mm

Type	Weight	Voltage	Polarity	Power
Denso OSGR	4.1Kg / 9.03lbs	12V	Both	2.0kW
CW	11	34mm

Amp	Hand	Lugs	Type	Weight
105A	180°	2	Cast	3.0Kg / 6.61lbs
12V	-VE	B+ / L (optional)	LMP071

Amp	Hand	Lugs	Type	Weight
105A	180°	2	Cast	3.0Kg / 6.61lbs
12V	-VE	B+ / L (optional)	LMP013

Amp	Hand	Lugs	Type	Weight
50A	180°	2	Cast	2.7Kg / 5.95lbs
12V	-VE	B+ / IG / L	LMP071

Amp	Hand	Lugs	Type	Weight
50A	180°	2	Cast	2.7Kg / 5.95lbs
12V	-VE	B+ / IG / L	LMP013

Amp	Hand	Lugs	Type	Weight
70A	180°	2	Cast	3.0Kg / 6.61lbs
12V	-VE	B+ / L (optional)	LMP071

Amp	Hand	Lugs	Type	Weight
70A	180°	2	Cast	3.0Kg / 6.61lbs
12V	-VE	B+ / L (optional)	LMP013

Amp	Hand	Lugs	Type	Weight
95A	R/H	2	Cast	4.1Kg / 9.04lbs
12V	-VE	B+ / Lamp	LMP013

Type	Weight	Voltage	Polarity	Power
Denso PMGR	3.2Kg / 7.05lbs	12V	-VE	1.4kW
CW	11	34mm

Type	Weight	Voltage	Polarity	Power
Denso OSGR	3.7Kg / 8.15lbs	12V	Both	1.4kW
CW	11	34mm

Amp	Hand	Lugs	Type	Weight
120A	PAD	3	Cast	5.3Kg / 11.71lbs
12V	-VE	B+ / Lamp	LMP217

Amp	Hand	Lugs	Type	Weight
175A	PAD	3	Cast	5.3Kg / 11.71lbs
12V	-VE	B+ / Lamp	LMP217

Amp	Hand	Lugs	Type	Weight
250A	PAD	3	Cast	5.3Kg / 11.71lbs
12V	-VE	B+ / Lamp	LMP217

Amp	Hand	Lugs	Type	Weight
320A	PAD	3	Cast	5.3Kg / 11.71lbs
12V	-VE	B+ / Lamp	LMP217

Amp	Hand	Lugs	Type	Weight
120A	PAD	3	Cast	5.3Kg / 11.71lbs
12V	-VE	B+ / FR / SIG / S	LMP217

Amp	Hand	Lugs	Type	Weight
175A	PAD	3	Cast	5.3Kg / 11.71lbs
12V	-VE	B+ / FR / SIG / S	LMP217

Amp	Hand	Lugs	Type	Weight
250A	PAD	3	Cast	5.3Kg / 11.71lbs
12V	-VE	B+ / FR / SIG / S	LMP217

Amp	Hand	Lugs	Type	Weight
320A	PAD	3	Cast	5.3Kg / 11.71lbs
12V	-VE	B+ / FR / SIG / S	LMP217

Type	Weight	Voltage	Polarity	Power
Denso OSGR	4.1Kg / 9.03lbs	12V	Both	2.0kW

Amp	Hand	Type	Weight	Voltage
170A	Pad	Billet	3.9Kg / 8.61lbs	12V
-VE	B+ / Lamp	LMP088-15

Amp	Hand	Type	Weight	Voltage
170A	Pad	Billet	3.9Kg / 8.61lbs	12V
-VE	B+	LMP088-15

Amp	Hand	Type	Weight	Voltage
180A	PAD	Cast	6.9Kg / 15.21lbs	12V
-VE	B+ / S SIG FR	LMP015-17

Amp	Hand	Type	Weight	Voltage
180A	PAD	Cast	6.9Kg / 15.21lbs	12V
-VE	B+	LMP015-17

Amp	Hand	Type	Weight	Voltage
240A	PAD	Cast	6.9Kg / 15.21lbs	12V
-VE	B+ / Lamp	LMP015-17

Amp	Hand	Type	Weight	Voltage
240A	PAD	Cast	6.9Kg / 15.21lbs	12V
-VE	B+ / S SIG FR	LMP015-17

Engineered Solutions to Real Problems●OE Quality, No Compromise

Alternators

High output, low rpm, superior reliability, application specific 'fit and forget' direct replacement OE units.

More info

Dynators

Alternators disguised as dynamos. Authentic and reliable: the perfect upgrade.

More info

Starter Motors

Bespoke, OE quality, high torque, gear reduction and durable. Ideal for hostile environments, or the ultimate upgrade.

More info

Spares

WOSP manufacture and stock a complete range of spares including pulleys, brackets, kits, tensioners, pinions, regulators and looms.

More info

Spares

PRODUCT FILTER

PRODUCT CATEGORY

Engineered Solutions to Real Problems●OE Quality, No Compromise

Alternators

Dynators

Starter Motors

Spares
