Ford V8 | GT40 original 'early ZF' (142 tooth ring gear) high torque starter motor (Type 1)LMS1270
Type Weight Voltage Polarity Power Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW Rotation Pinion Teeth Pinion Dia CW 10 28mm
-

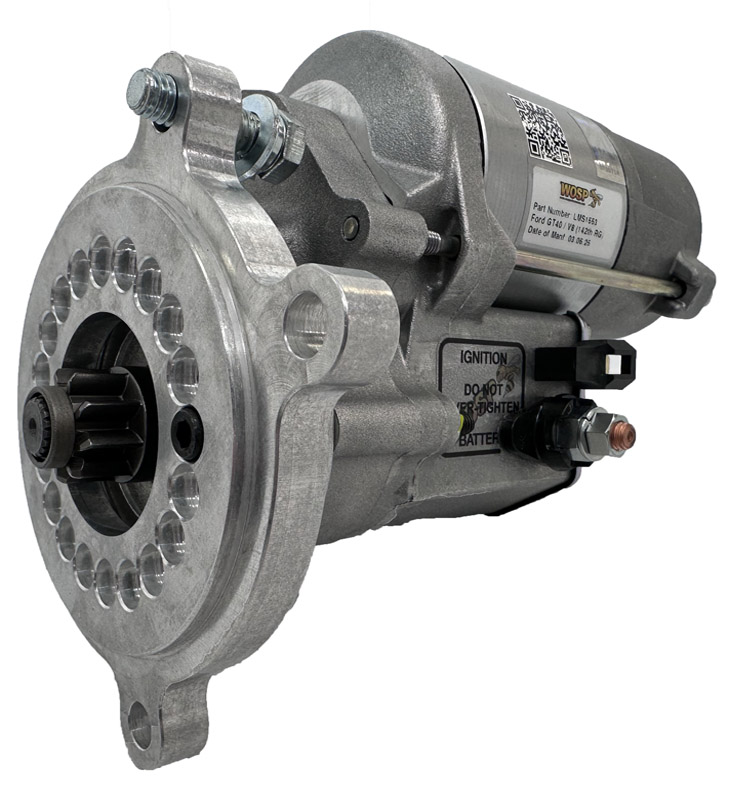

Ford V8 | GT40 original 'early ZF' (142 tooth ring gear) super duty starter motor (Type 2)LMS1553
Type Weight Voltage Polarity Power Denso OSGR*r 4.1Kg / 9.03lbs 12V Both 2.0kW Rotation Pinion Teeth Pinion Dia CW 9 25mm
-
Ford V8 | Lola T300 (116 tooth ring gear) high torque starter motorLMS637
Type Weight Voltage Polarity Power Denso OSGR 3.7Kg / 8.15lbs 12V Both 1.4kW Rotation CW
-
Ford V8 260 | 289 | 302 | 351W (157 tooth bell housing | 153 tooth ring gear) high torque starter motorLMS1476
Type Weight Voltage Polarity Power Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW Rotation Pinion Teeth Pinion Dia CW 13 34mm
-
Ford V8 260 | 289 | 302 | 351W (C4 Trans) 1.2kW high torque starter motorLMS897
Type Weight Voltage Polarity Power Denso OSGR *r 3.5Kg / 7.72lbs 12V Both 1.2kW Pinion Teeth Pinion Dia 11 29mm
-
Ford V8 260 | 289 | 302 | 351W (C4 Trans) 1.4kW high torque starter motorLMS898
Type Weight Voltage Polarity Power Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW Rotation Pinion Teeth Pinion Dia CW 11 29mm
-
Ford V8 260 | 289 | 302 | 351W (C4 Trans) LH (motor underneath) 2.3kW super-duty starter motorLMS1012
Type Weight Voltage Polarity Power Denso OSGR 5.9Kg / 13.01lbs 12V Both 2.3kW
-
Ford V8 260 | 289 | 302 | 351W (C4 Trans) LH (motor underneath) 24 Volt OE starter motorLMS1109
Type Weight Voltage Polarity Power Denso OSGR 5.9Kg / 13.01lbs 24V Both 2.3kW
-
Ford V8 260 | 289 | 302 | 351W (C4 Trans) super-duty starter motorLMS899
Type Weight Voltage Polarity Power Denso OSGR 4.1Kg / 9.03lbs 12V Both 2.0kW Rotation Pinion Teeth Pinion Dia CW 11 29mm
-
Ford V8 351 | 400 | 429 (C6 Trans) 1.2kW high torque starter motorLMS903
Type Weight Voltage Polarity Power Denso OSGR *r 3.5Kg / 7.72lbs 12V Both 1.2kW Pinion Teeth Pinion Dia 11 29mm
-
Ford V8 351 | 400 | 429 (C6 Trans) 1.4kW high torque starter motorLMS904
Type Weight Voltage Polarity Power Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW Rotation Pinion Teeth Pinion Dia CW 11 29mm
-
Ford V8 351 | 400 | 429 (C6 Trans) super-duty starter motorLMS905
Type Weight Voltage Polarity Power Denso OSGR 4.1Kg / 9.03lbs 12V Both 2.0kW Pinion Teeth Pinion Dia 11 29mm
-
Ford V8 390 | 427 | 428 (FE engine) 1.2kW high torque starter motorLMS900
Type Weight Voltage Polarity Power Denso OSGR *r 3.5Kg / 7.72lbs 12V Both 1.2kW Pinion Teeth Pinion Dia 11 29mm
-
Ford V8 390 | 427 | 428 (FE engine) 1.4kW high torque starter motorLMS901
Type Weight Voltage Polarity Power Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW Rotation Pinion Teeth Pinion Dia CW 11 29mm
-
Ford V8 390 | 427 | 428 (FE engine) RH (motor on top) 1.4kW high torque starter motorLMS1122
Type Weight Voltage Polarity Power Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW Rotation Pinion Teeth Pinion Dia CW 9 25mm
-
Ford V8 390 | 427 | 428 (FE engine) super-duty starter motorLMS902
Type Weight Voltage Polarity Power Denso OSGR 4.1Kg / 9.03lbs 12V Both 2.0kW Pinion Teeth Pinion Dia 11 29mm
-
Ford V8 '44-'57 50A DynatorLMDELC001
Amp Voltage Polarity B+ Position Pulley 50A 12V -VE Fixed LMP031
-
Ford V8 '44-'57 50A Dynator (+VE Ground)LMDELC001+VE
Amp Voltage Polarity B+ Position Pulley 50A 12V +VE Fixed LMP031
-
Ford V8 and inline 6 replacing 6 Volt (3 bolt) '52-'53 high torque starter motorLMS1121
Type Weight Voltage Polarity Power Denso OSGR *r 3.5Kg / 7.72lbs 12V Both 1.2kW Rotation Pinion Teeth Pinion Dia CW 9 29mm
-
Ford V8 'universal fitment' high torque starter motorLMS173-11
Type Weight Voltage Polarity Power Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW Rotation Pinion Teeth Pinion Dia CW 11 29mm
-
Ford V8 'universal fitment'super-duty starter motorLMS173-11-2.0
Type Weight Voltage Polarity Power Denso OSGR 4.1Kg / 9.03lbs 12V Both 2.0kW Rotation Pinion Teeth Pinion Dia CW 11 29mm
-
Ford V8 various | 460 Ford Industrial high performance starter motorLMS932
Type Weight Voltage Polarity Power Denso WFGR 4.2Kg / 9.26lbs 12V Both 2.2kW Rotation Pinion Teeth Pinion Dia CW 11 29mm
-
Ford 'various' inc. Escort | Mondeo | Focus RS Mk1LMS277
Type Weight Voltage Polarity Power Denso OSGR 3.7Kg / 8.15lbs 12V Both 1.4kW Rotation Pinion Teeth Pinion Dia CW 10 26mm
-

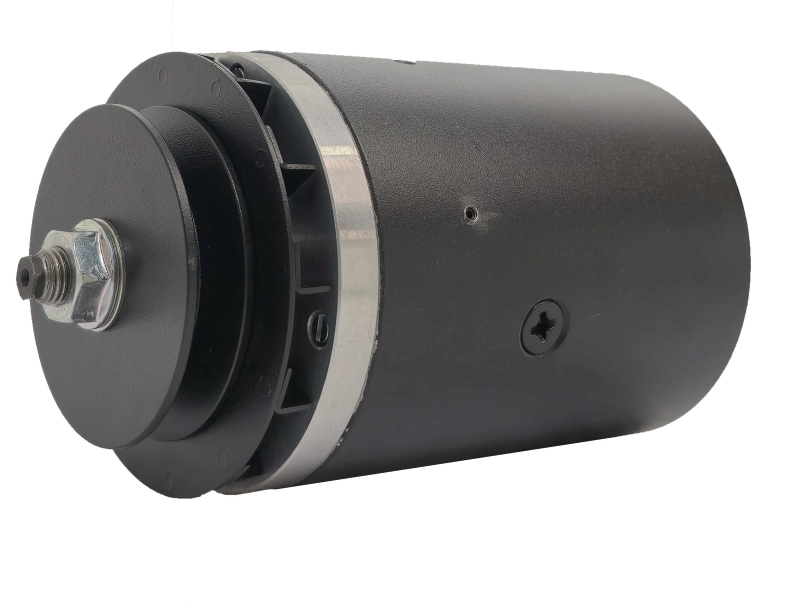

Ford Vedette '48-'54 50A DynatorLMDVED002
Amp Voltage Polarity B+ Position Pulley 50A 12V -VE Fixed LMP268
-
Ford Vedette '48-'54 50A Dynator (+VE Ground)LMDVED002+VE
Amp Voltage Polarity B+ Position Pulley 50A 12V +VE Fixed LMP268
-
Ford Vedette '48-'54 50A Dynator (6 Volt)LMDVED002-6V
Amp Voltage Polarity B+ Position Pulley 50A 6V -VE Fixed LMP268
-
Ford Visteon 2ltr Duratec solenoidLMRS014
-
Ford Watermota (Sea Panther | Sea Tiger | Sea Wolf) Inline Diesel high torque starter motorLMS1452
Type Weight Voltage Polarity Power Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW Rotation Pinion Teeth Pinion Dia CW 10 29mm
-

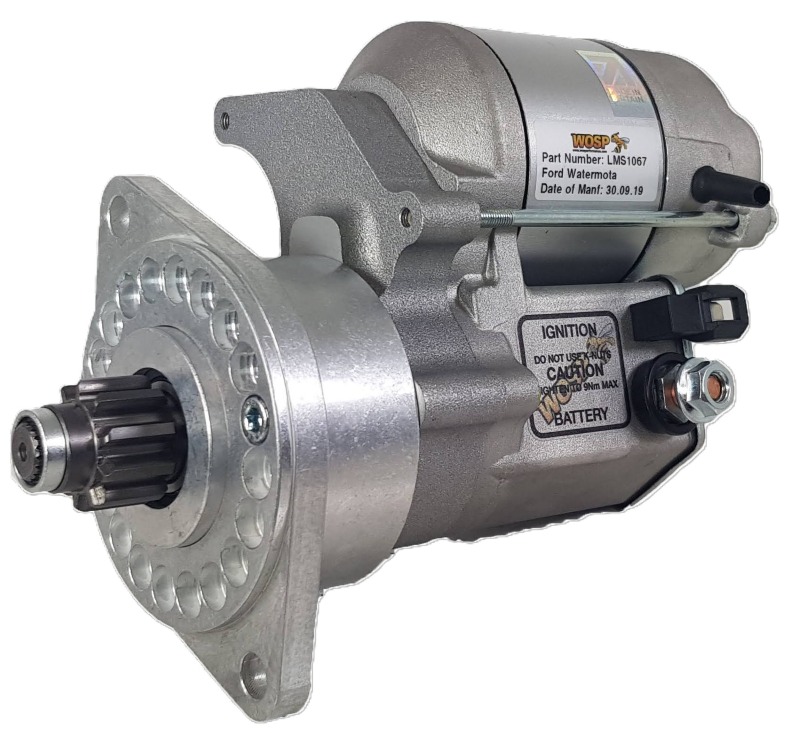

Ford Watermota (Sea Panther | Sea Tiger | Sea Wolf) Inline Petrol high torque starter motorLMS1067
Type Weight Voltage Polarity Power Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW Rotation Pinion Teeth Pinion Dia CW 10 29mm
-

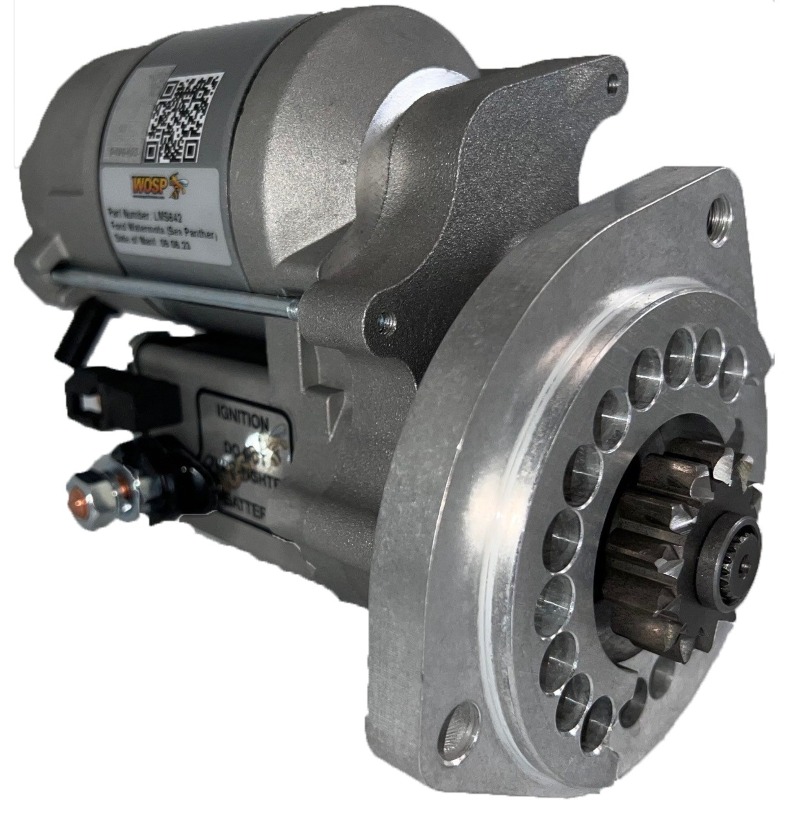

Ford Watermota (Sea Panther) offset Diesel high torque starter motorLMS642
Type Weight Voltage Polarity Power Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW Rotation Pinion Teeth Pinion Dia CW 13 40mm
-
Ford X-Flow - MT75 transmission (110 tooth ring gear) high torque starter motorLMS571
Type Weight Voltage Polarity Power Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW Rotation Pinion Teeth Pinion Dia CW 9 29mm
-
Ford X-Flow - MT75 transmission (110 tooth ring gear) slimline starter motorLMS572
Type Weight Voltage Polarity Power Hitachi PMGR 3.0Kg / 6.61lbs 12V -VE 1.4kW Rotation Pinion Teeth Pinion Dia CW 9 29mm
-
Ford X-Flow (90 tooth ring gear) high torque starter motorLMS562
Type Weight Voltage Polarity Power Denso OSGR 3.7Kg / 8.15lbs 12V Both 1.4kW Rotation Pinion Teeth Pinion Dia CW 15 44mm
-
Ford Zephyr | Zodiac straight 6 (4cyl ring gear) high torque starter motorLMS391
Type Weight Voltage Polarity Power Denso OSGR 3.7Kg / 8.15lbs 12V Both 1.4kW Rotation Pinion Teeth Pinion Dia CW 11 34mm
-
Ford Zephyr | Zodiac straight 6 (offset ring gear) high torque starterLMS954
Type Weight Voltage Polarity Power Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW Rotation Pinion Teeth Pinion Dia CW 9 29mm
-
Ford Zephyr | Zodiac straight 6 high torque starterLMS032
Type Weight Voltage Polarity Power Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW Rotation Pinion Teeth Pinion Dia CW 9 29mm
-
Ford Zetec - Hewland transmission high torque starter motorLMS292
Type Weight Voltage Polarity Power Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW Rotation Pinion Teeth Pinion Dia CW 10 26mm
-
Ford Zetec (MT75 transmission) 138 tooth ring gear high torque starter motorLMS1378
Type Weight Voltage Polarity Power Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW Rotation Pinion Teeth Pinion Dia CW 11 29mm
-

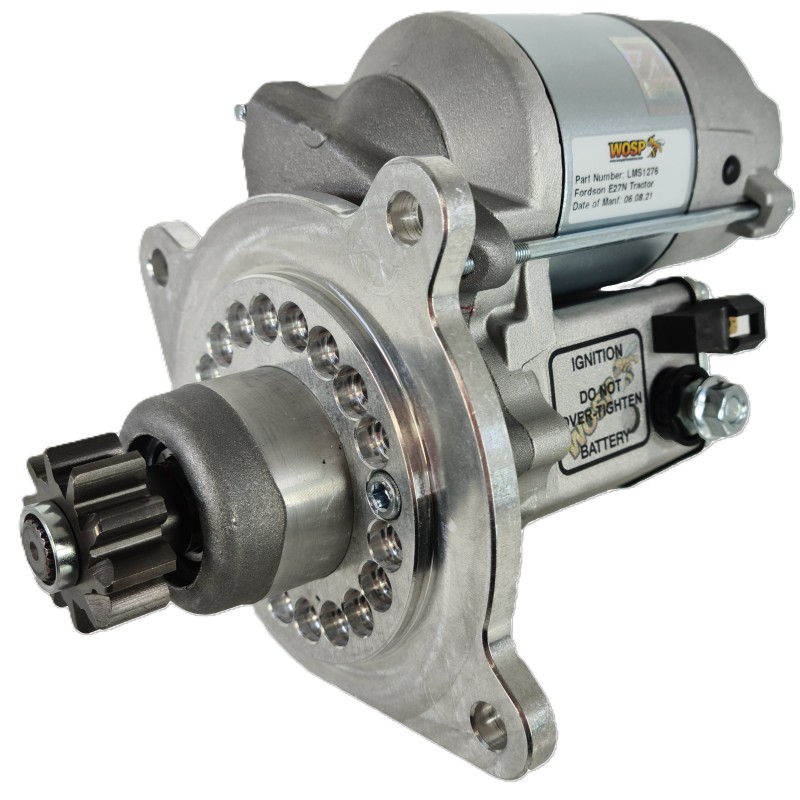

Fordson E27N Tractor high torque starter motorLMS1276
Type Weight Voltage Polarity Power Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW Rotation Pinion Teeth Pinion Dia CW 10 40mm
-
Formula Ford (Zetec | Hewland) high torque starter motorLMS225
Type Weight Voltage Polarity Power Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW Rotation Pinion Teeth Pinion Dia CW 10 26mm
-
Formula Ford 1600 (110 tooth ring gear) high torque starter motorLMS1226
Type Weight Voltage Polarity Power Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW Rotation Pinion Teeth Pinion Dia CW 9 29mm
-
Formula Ford 1600 (110 tooth ring gear) slimline starter motorLMS1227
Type Weight Voltage Polarity Power Hitachi PMGR 3.0Kg / 6.61lbs 12V -VE 1.4kW Rotation Pinion Teeth Pinion Dia CW 9 29mm
-
Formula Ford 1600 (Sigma engine) high torque starter motorLMS373
Type Weight Voltage Polarity Power Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW Rotation Pinion Teeth Pinion Dia CW 10 26mm
-
Formula Ford 1600 Spectrum high torque starter motorLMS472
Type Weight Voltage Polarity Power Denso OSGR *r 3.6Kg / 7.90lbs 12V Both 1.0kW
-

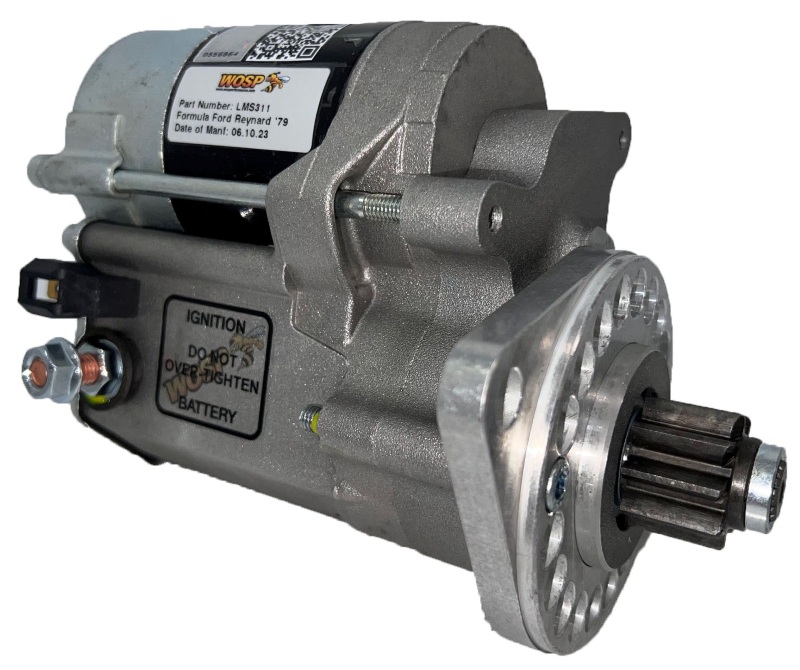

Formula Ford Reynard '79 high torque starter motorLMS311
Type Weight Voltage Polarity Power Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW Rotation Pinion Teeth Pinion Dia CW 9 29mm
-

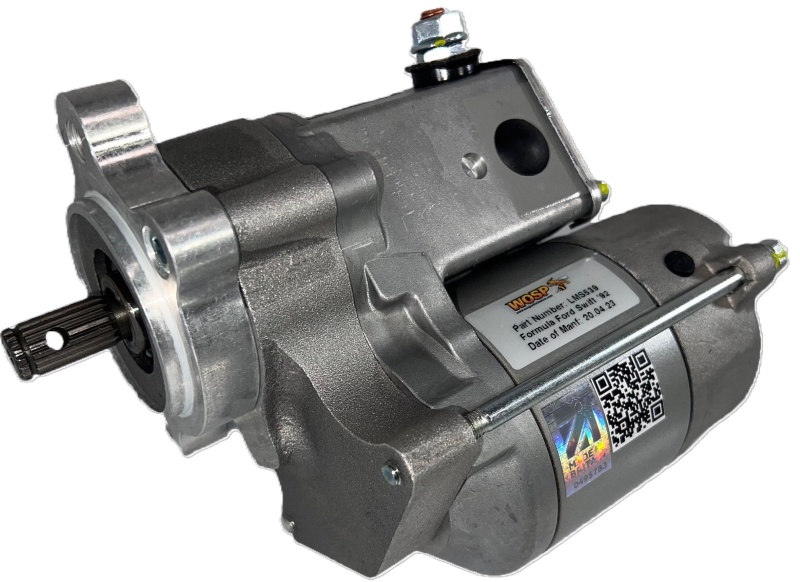

Formula Ford Swift SC92 high torque starter motorLMS539
Type Weight Voltage Polarity Power Denso OSGR 3.7Kg / 8.15lbs 12V Both 1.4kW Rotation Pinion Teeth Pinion Dia CW None None
-
Formula Ford Van Diemen RF85 | RF86 | RF87 high torque starter motorLMS672
Type Weight Voltage Polarity Power Denso OSGR *r 3.6Kg / 7.90lbs 12V Both 1.0kW
-
Formula Ford Van Diemen VD82 high torque starter motorLMS310
Type Weight Voltage Polarity Power Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW Rotation Pinion Teeth Pinion Dia CW 9 29mm
-
Frazer Nash (AC engine) high torque starter motorLMS404
Type Weight Voltage Polarity Power Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW Rotation Pinion Teeth Pinion Dia CW 11 40mm
-

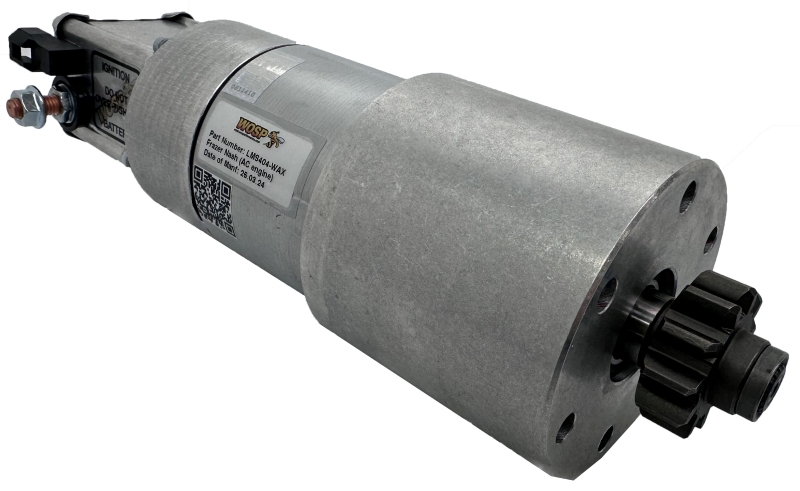

Frazer Nash (AC engine) replica starter motorLMS404-WAX
Type Weight Voltage Polarity Power WOSP Axial ( WAX ) 3.9Kg / 8.60lbs 12V Both 2.2kW Rotation Pinion Teeth Pinion Dia CW 11 40mm
