Isuzu KB Trooper & various high torque starter motor

LMS1091

Type Weight Voltage Polarity Power
Denso OSGR *r 3.5Kg / 7.72lbs 12V Both 1.2kW
Rotation Pinion Teeth
CW 9
Isuzu N Series Diesel heavy duty starter motor

LMS5033

Type Voltage Polarity Power
Denso PLGR 24V Both 4.8kW
Iszuz PA90 starter motor loom

LMSL011
J180 Mount 48V 100A Alternator

LMA078

Amp Hand Lugs Type Weight
100A 180° 3 Cast 8.5Kg / 18.74lbs
Voltage Polarity Connection B+ Position Pulley
48V -VE B+ Fixed LMP287
Jaguar 2.4 | 3.4 | 3.8 'various' auto transmission high torque starter motor

LMS089

Type Weight Voltage Polarity Power
Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 10 29mm

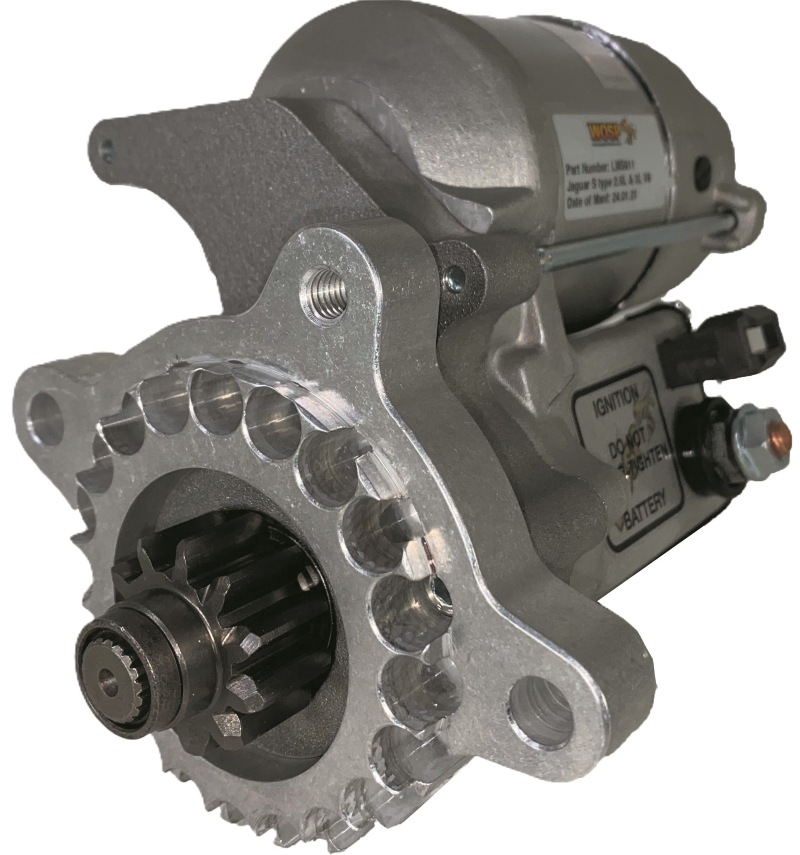

Jaguar 2.5 & 3L V6 high torque starter motor

LMS611

Type Weight Voltage Polarity Power
Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 11 34mm
Jaguar 3.4 | 4.2 'various' high torque starter motor

LMS003

Type Weight Voltage Polarity Power
Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 9 29mm

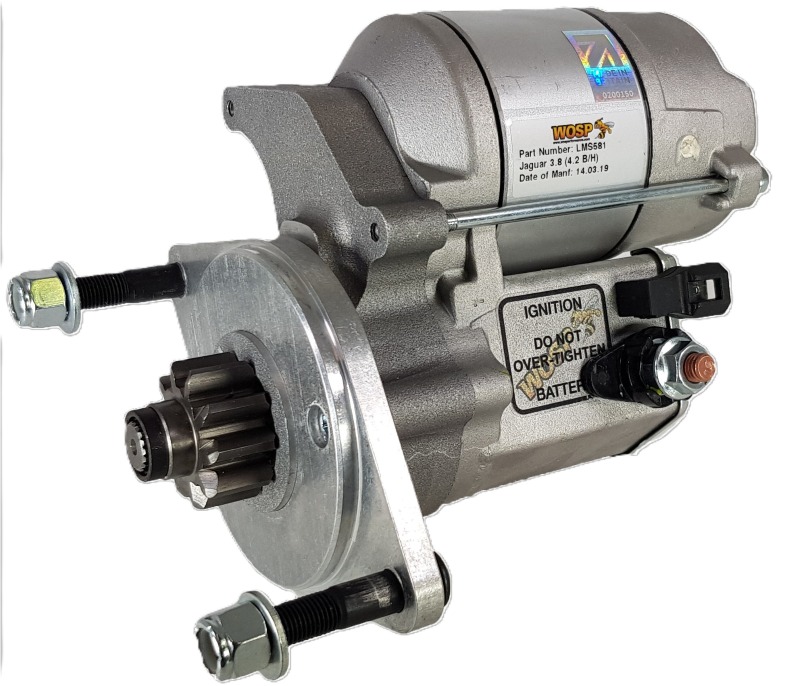

Jaguar 3.8 engine | 4.2 bellhousing (104 tooth ring gear) high torque starter motor

LMS581

Type Weight Voltage Polarity Power
Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 10 36mm
Jaguar 4.2 (4.7) engine & bell housing (132 tooth ring gear) high torque starter motor

LMS1289

Type Weight Voltage Polarity Power
Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 9 29mm

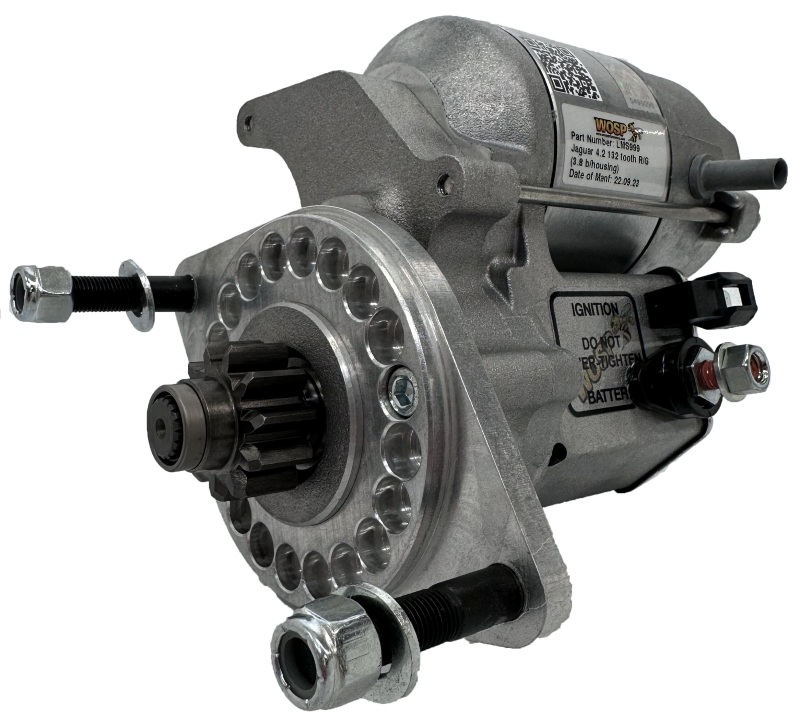

Jaguar 4.2 engine | 3.8 bell housing (132 tooth ring gear) high torque starter motor

LMS999

Type Weight Voltage Polarity Power
Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 11 34mm

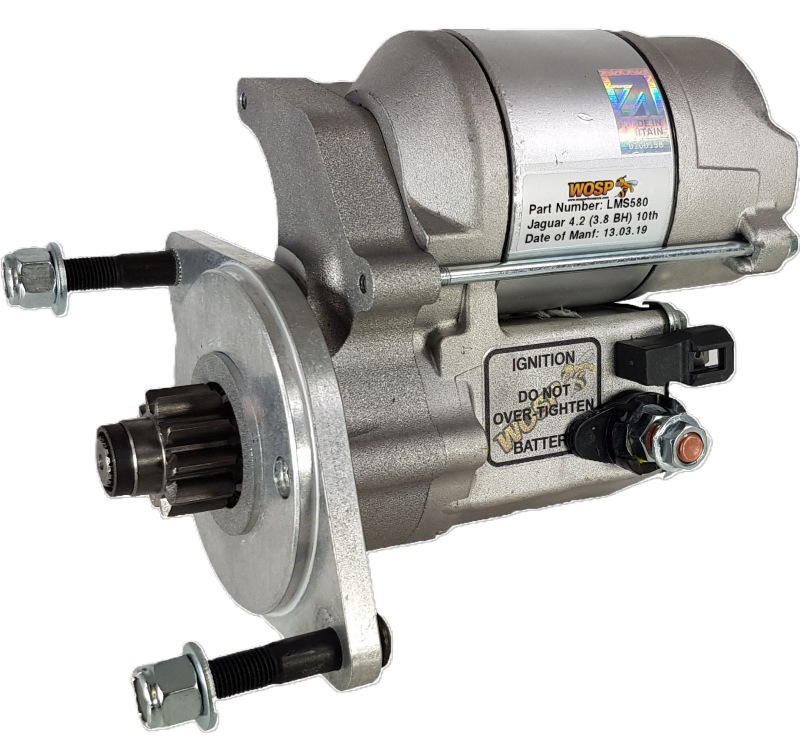

Jaguar 4.2 engine | 3.8 bell housing (133 tooth ring gear) high torque starter motor

LMS580

Type Weight Voltage Polarity Power
Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 10 31mm

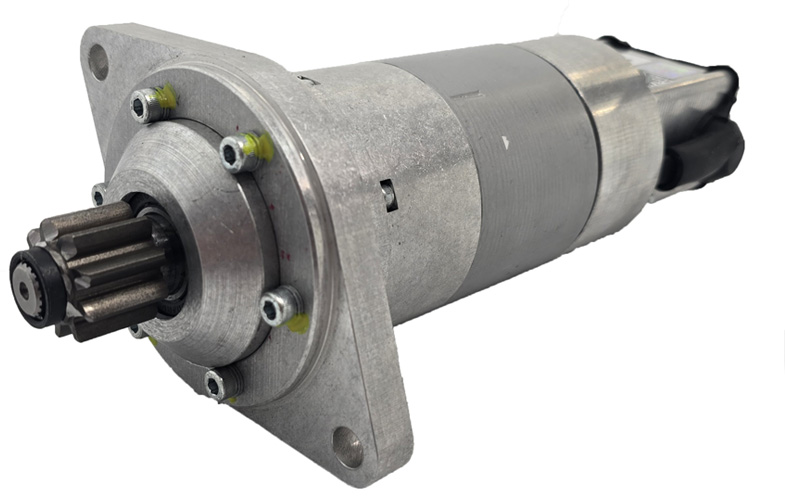

Jaguar D-Type axial starter motor

LMS030-WAX

Type Weight Voltage Polarity Power
WOSP Axial ( WAX ) 3.9Kg / 8.60lbs 12V Both 2.2kW
Rotation Pinion Teeth Pinion Dia
CCW 9 29mm

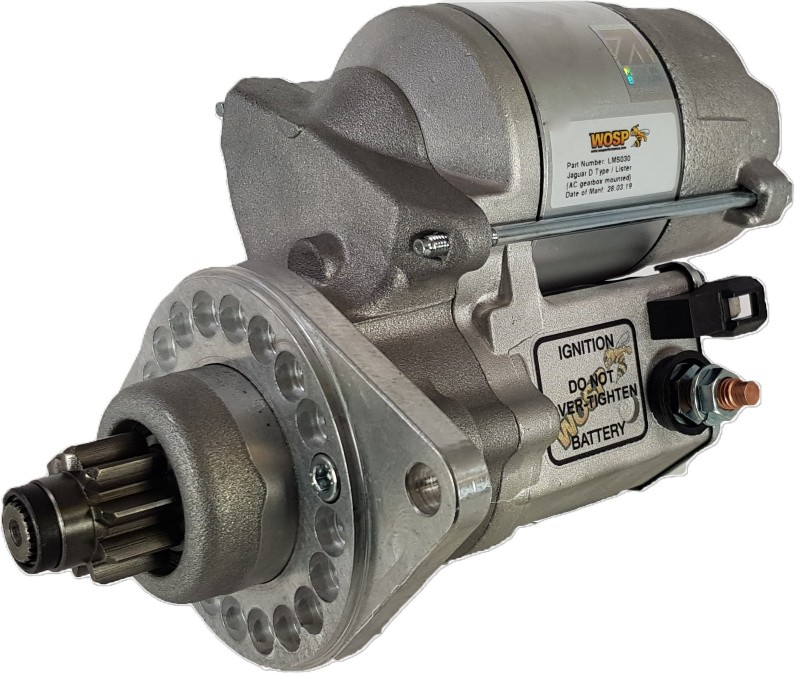

Jaguar D-Type high torque starter motor

LMS030

Type Weight Voltage Polarity Power
Denso OSGR 3.7Kg / 8.15lbs 12V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CCW 9 29mm
Jaguar E-Type 2.4 | 2.8 | 3.4 | 3.8 'various' manual transmission high torque starter motor

LMS004

Type Weight Voltage Polarity Power
Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 10 40mm

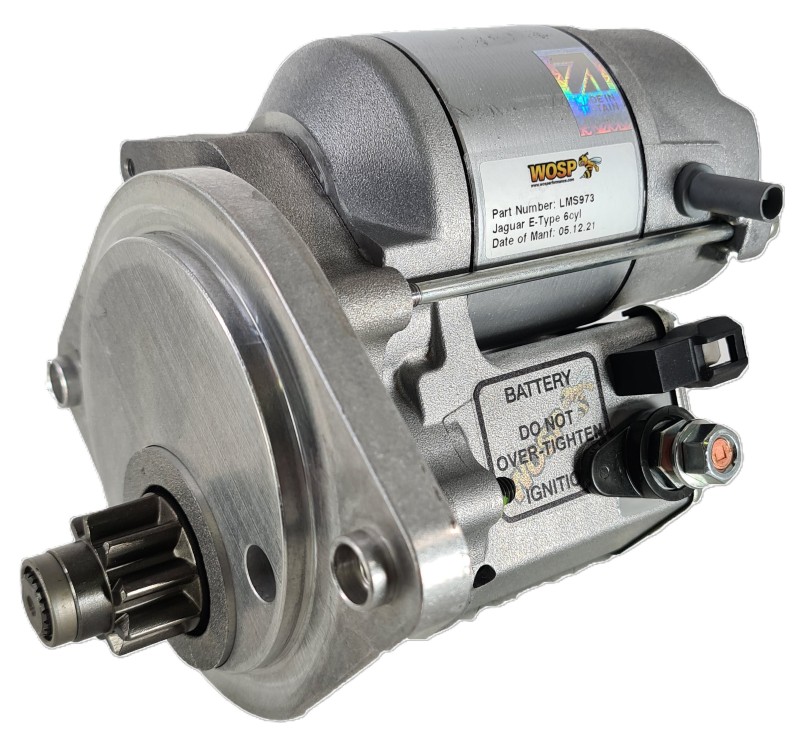

Jaguar E-Type 6cyl (small flywheel | 7.25 clutch) high torque starter motor

LMS973

Type Weight Voltage Polarity Power
Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 9 29mm
Jaguar E-Type S3 V12 95A Butec Alternator

LMA371

Amp Hand Lugs Type Weight
95A Butec 3 Billet 3.9Kg / 8.61lbs
Voltage Polarity Connection Pulley
12V -VE B+ / Lamp LMP032
Jaguar Mk4 high torque starter motor

LMS705

Type Weight Voltage Polarity Power
Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 10 40mm
Jaguar MK5 & MK7 3.4 high torque starter motor

LMS107

Type Weight Voltage Polarity Power
Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 10 40mm
Jaguar S1 | S1.5 4.2 80A Alternator

LMA011AC-80-S1

Amp Hand Lugs Type Weight
80A R/H 2 Cast 4.4Kg / 9.70lbs
Voltage Polarity Connection B+ Position Pulley
12V -VE B+ / Lamp Fixed LMP024
Jaguar S1 3.8 E-Type 80A Alternator

LMA073

Amp Hand Lugs Type Weight
80A R/H 3 Cast 4.5Kg / 9.92lbs
Voltage Polarity Connection B+ Position Pulley
12V -VE B+ / Lamp Fixed LMP024
Jaguar S2 4.2 'early' 80A Alternator

LMA011AC-80-S2

Amp Hand Lugs Type Weight
80A R/H 2 Cast 4.4Kg / 9.70lbs
Voltage Polarity Connection B+ Position Pulley
12V -VE B+ / Lamp Fixed LMP004
Jaguar S2 4.2 'late | AC' E-Type 80A Alternator (2-Lug)

LMA011AC-80-AC

Amp Hand Lugs Type Weight
80A R/H 2 Cast 4.4Kg / 9.70lbs
Voltage Polarity Connection B+ Position Pulley
12V -VE B+ / Lamp Fixed LMP004
Jaguar S2 4.2 'late | AC' E-Type 80A Alternator (3-Lug)

LMA012-80-S2-AC

Amp Hand Lugs Type Weight
80A R/H 3 Cast 4.5Kg / 9.92lbs
Voltage Polarity Connection B+ Position Pulley
12V -VE B+ / Lamp Fixed LMP004
Jaguar S2 4.2 'late' E-Type 80A Alternator

LMA012-80-S2

Amp Hand Lugs Type Weight
80A R/H 3 Cast 4.5Kg / 9.92lbs
Voltage Polarity Connection B+ Position Pulley
12V -VE B+ / Lamp Fixed LMP224
Jaguar Sovereign | XJ6 | XJ12 | XJS | XJSC 120A Alternator

LMA341-LO

Amp Hand Lugs Type Weight
120A R/H 3 Billet 5.3Kg / 11.71lbs
Voltage Polarity Connection Pulley
12V -VE B+ / Lamp LMP008
Jaguar Sovereign | XJ6 | XJ12 | XJS | XJSC 175A Alternator

LMA341

Amp Hand Lugs Type Weight
175A R/H 3 Billet 5.3Kg / 11.71lbs
Voltage Polarity Connection Pulley
12V -VE B+ / Lamp LMP008
Jaguar Sovereign | XJ6 | XJ12 | XJS | XJSC 250A Alternator

LMA341-MHO

Amp Hand Lugs Type Weight
250A R/H 3 Billet 5.3Kg / 11.71lbs
Voltage Polarity Connection Pulley
12V -VE B+ / Lamp LMP008
Jaguar Sovereign | XJ6 | XJ12 | XJS | XJSC 320A Alternator

LMA341-HO

Amp Hand Lugs Type Weight
320A R/H 3 Billet 5.3Kg / 11.71lbs
Voltage Polarity Connection Pulley
12V -VE B+ / Lamp LMP008
Jaguar S-Type | XF | XJ6 high performance starter motor

LMS775

Type Weight Voltage Polarity Power
Denso WFGR 4.2Kg / 9.26lbs 12V Both 2.2kW
Jaguar S-Type | XJ8 | XJR | XK | XK8 | XKR 120A Alternator - 3171

LMA442-LO

Amp Hand Lugs Type Weight
120A L/H 2 Billet 5.3Kg / 11.71lbs
Voltage Polarity Connection Pulley
12V -VE B+ / IG / S / L LMP150
Jaguar S-Type | XJ8 | XJR | XK | XK8 | XKR 120A Alternator - 3630

LMA444-LO

Amp Hand Lugs Type Weight
120A L/H 2 Billet 5.3Kg / 11.71lbs
Voltage Polarity Connection Pulley
12V -VE B+ / IG / S / L LMP150
Jaguar S-Type | XJ8 | XJR | XK | XK8 | XKR 175A Alternator - 3171

LMA442

Amp Hand Lugs Type Weight
175A L/H 2 Billet 5.3Kg / 11.71lbs
Voltage Polarity Connection Pulley
12V -VE B+ / IG / S / L LMP150
Jaguar S-Type | XJ8 | XJR | XK | XK8 | XKR 175A Alternator - 3630

LMA444

Amp Hand Lugs Type Weight
175A L/H 2 Billet 5.3Kg / 11.71lbs
Voltage Polarity Connection Pulley
12V -VE B+ / IG / S / L LMP150
Jaguar S-Type | XJ8 | XJR | XK | XK8 | XKR 180A Super duty Alternator - 3171

LMA443-LO

Amp Hand Lugs Type Weight
180A L/H 2 Billet 6.9Kg / 15.21lbs
Voltage Polarity Connection Pulley
12V -VE B+ / IG / S / L LMP150
Jaguar S-Type | XJ8 | XJR | XK | XK8 | XKR 180A Super duty Alternator - 3630

LMA445-LO

Amp Hand Lugs Type Weight
180A L/H 2 Billet 6.9Kg / 15.21lbs
Voltage Polarity Connection Pulley
12V -VE B+ / IG / S / L LMP150
Jaguar S-Type | XJ8 | XJR | XK | XK8 | XKR 240A Super duty Alternator - 3171

LMA443

Amp Hand Lugs Type Weight
240A L/H 2 Billet 6.9Kg / 15.21lbs
Voltage Polarity Connection Pulley
12V -VE B+ / IG / S / L LMP150
Jaguar S-Type | XJ8 | XJR | XK | XK8 | XKR 240A Super duty Alternator - 3630

LMA445

Amp Hand Lugs Type Weight
240A L/H 2 Billet 6.9Kg / 15.21lbs
Voltage Polarity Connection Pulley
12V -VE B+ / IG / S / L LMP150
Jaguar S-Type | XJ8 | XJR | XK | XK8 | XKR 250A Alternator - 3171

LMA442-MHO

Amp Hand Lugs Type Weight
250A L/H 2 Billet 5.3Kg / 11.71lbs
Voltage Polarity Connection Pulley
12V -VE B+ / IG / S / L LMP150
Jaguar S-Type | XJ8 | XJR | XK | XK8 | XKR 250A Alternator - 3630

LMA444-MHO

Amp Hand Lugs Type Weight
250A L/H 2 Billet 5.3Kg / 11.71lbs
Voltage Polarity Connection Pulley
12V -VE B+ / IG / S / L LMP150
Jaguar S-Type | XJ8 | XJR | XK | XK8 | XKR 290A Super duty Alternator - 3171

LMA443-MHO

Amp Hand Lugs Type Weight
290A L/H 2 Billet 6.9Kg / 15.21lbs
Voltage Polarity Connection Pulley
12V -VE B+ / IG / S / L LMP150
Jaguar S-Type | XJ8 | XJR | XK | XK8 | XKR 290A Super duty Alternator - 3630

LMA445-MHO

Amp Hand Lugs Type Weight
290A L/H 2 Billet 6.9Kg / 15.21lbs
Voltage Polarity Connection Pulley
12V -VE B+ / IG / S / L LMP150
Jaguar S-Type | XJ8 | XJR | XK | XK8 | XKR 320A Alternator - 3171

LMA442-HO

Amp Hand Lugs Type Weight
320A L/H 2 Billet 5.3Kg / 11.71lbs
Voltage Polarity Connection Pulley
12V -VE B+ / IG / S / L LMP150
Jaguar S-Type | XJ8 | XJR | XK | XK8 | XKR 320A Alternator - 3630

LMA444-HO

Amp Hand Lugs Type Weight
320A L/H 2 Billet 5.3Kg / 11.71lbs
Voltage Polarity Connection Pulley
12V -VE B+ / IG / S / L LMP150
Jaguar S-Type | XJ8 | XJR | XK | XK8 | XKR 390A Super duty Alternator - 3630

LMA445-HO

Amp Hand Lugs Type Weight
390A L/H 2 Billet 6.9Kg / 15.21lbs
Voltage Polarity Connection Pulley
12V -VE B+ / IG / S / L LMP150
Jaguar S-Type | XJ8 | XJR | XK | XK8 | XKR 390A Super duty Alternator -3171

LMA443-HO

Amp Hand Lugs Type Weight
390A L/H 2 Billet 6.9Kg / 15.21lbs
Voltage Polarity Connection Pulley
12V -VE B+ / IG / S / L LMP150
Jaguar V12 'early' manual | auto high torque starter motor

LMS145

Type Weight Voltage Polarity Power
Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 9 29mm
Jaguar V12 E-Type 100A Alternator

LMA021

Amp Hand Lugs Type Weight
100A L/H 2 Cast 4.7Kg / 10.36lbs
Voltage Polarity Connection B+ Position Pulley
12V -VE B+ / Lamp Fixed LMP032
Jaguar V12 E-Type 120A Butec Alternator

LMA450-LO

Amp Hand Lugs Type Weight
120A Butec 2 Billet 5.3Kg / 11.71lbs
Voltage Polarity Connection Pulley
12V -VE B+ / Lamp LMP032
Jaguar V12 E-Type 175A Butec Alternator

LMA450

Amp Hand Lugs Type Weight
175A Butec 2 Billet 5.3Kg / 11.71lbs
Voltage Polarity Connection Pulley
12V -VE B+ / Lamp LMP032
Jaguar V12 E-Type 180A Butec Alternator

LMA451-LO

Amp Hand Lugs Type Weight
180A Butec 2 Billet 6.9Kg / 15.21lbs
Voltage Polarity Connection Pulley
12V -VE B+ / Lamp LMP032

Type	Weight	Voltage	Polarity	Power
Denso OSGR *r	3.5Kg / 7.72lbs	12V	Both	1.2kW
CW	9

Type	Voltage	Polarity	Power
Denso PLGR	24V	Both	4.8kW

Amp	Hand	Lugs	Type	Weight
100A	180°	3	Cast	8.5Kg / 18.74lbs
48V	-VE	B+	Fixed	LMP287

Type	Weight	Voltage	Polarity	Power
Denso OSGR *r	3.7Kg / 8.15lbs	12V	Both	1.4kW
CW	10	29mm

Type	Weight	Voltage	Polarity	Power
Denso OSGR *r	3.7Kg / 8.15lbs	12V	Both	1.4kW
CW	11	34mm

Type	Weight	Voltage	Polarity	Power
Denso OSGR *r	3.7Kg / 8.15lbs	12V	Both	1.4kW
CW	9	29mm

Type	Weight	Voltage	Polarity	Power
Denso OSGR *r	3.7Kg / 8.15lbs	12V	Both	1.4kW
CW	10	36mm

Type	Weight	Voltage	Polarity	Power
Denso OSGR *r	3.7Kg / 8.15lbs	12V	Both	1.4kW
CW	9	29mm

Type	Weight	Voltage	Polarity	Power
Denso OSGR *r	3.7Kg / 8.15lbs	12V	Both	1.4kW
CW	11	34mm

Type	Weight	Voltage	Polarity	Power
Denso OSGR *r	3.7Kg / 8.15lbs	12V	Both	1.4kW
CW	10	31mm

Type	Weight	Voltage	Polarity	Power
WOSP Axial ( WAX )	3.9Kg / 8.60lbs	12V	Both	2.2kW
CCW	9	29mm

Type	Weight	Voltage	Polarity	Power
Denso OSGR	3.7Kg / 8.15lbs	12V	Both	1.4kW
CCW	9	29mm

Type	Weight	Voltage	Polarity	Power
Denso OSGR *r	3.7Kg / 8.15lbs	12V	Both	1.4kW
CW	10	40mm

Type	Weight	Voltage	Polarity	Power
Denso OSGR *r	3.7Kg / 8.15lbs	12V	Both	1.4kW
CW	9	29mm

Amp	Hand	Lugs	Type	Weight
95A	Butec	3	Billet	3.9Kg / 8.61lbs
12V	-VE	B+ / Lamp	LMP032

Type	Weight	Voltage	Polarity	Power
Denso OSGR *r	3.7Kg / 8.15lbs	12V	Both	1.4kW
CW	10	40mm

Type	Weight	Voltage	Polarity	Power
Denso OSGR *r	3.7Kg / 8.15lbs	12V	Both	1.4kW
CW	10	40mm

Amp	Hand	Lugs	Type	Weight
80A	R/H	2	Cast	4.4Kg / 9.70lbs
12V	-VE	B+ / Lamp	Fixed	LMP024

Amp	Hand	Lugs	Type	Weight
80A	R/H	3	Cast	4.5Kg / 9.92lbs
12V	-VE	B+ / Lamp	Fixed	LMP024

Amp	Hand	Lugs	Type	Weight
80A	R/H	2	Cast	4.4Kg / 9.70lbs
12V	-VE	B+ / Lamp	Fixed	LMP004

Amp	Hand	Lugs	Type	Weight
80A	R/H	2	Cast	4.4Kg / 9.70lbs
12V	-VE	B+ / Lamp	Fixed	LMP004

Amp	Hand	Lugs	Type	Weight
80A	R/H	3	Cast	4.5Kg / 9.92lbs
12V	-VE	B+ / Lamp	Fixed	LMP004

Amp	Hand	Lugs	Type	Weight
80A	R/H	3	Cast	4.5Kg / 9.92lbs
12V	-VE	B+ / Lamp	Fixed	LMP224

Amp	Hand	Lugs	Type	Weight
120A	R/H	3	Billet	5.3Kg / 11.71lbs
12V	-VE	B+ / Lamp	LMP008

Amp	Hand	Lugs	Type	Weight
175A	R/H	3	Billet	5.3Kg / 11.71lbs
12V	-VE	B+ / Lamp	LMP008

Amp	Hand	Lugs	Type	Weight
250A	R/H	3	Billet	5.3Kg / 11.71lbs
12V	-VE	B+ / Lamp	LMP008

Amp	Hand	Lugs	Type	Weight
320A	R/H	3	Billet	5.3Kg / 11.71lbs
12V	-VE	B+ / Lamp	LMP008

Type	Weight	Voltage	Polarity	Power
Denso WFGR	4.2Kg / 9.26lbs	12V	Both	2.2kW

Amp	Hand	Lugs	Type	Weight
120A	L/H	2	Billet	5.3Kg / 11.71lbs
12V	-VE	B+ / IG / S / L	LMP150

Amp	Hand	Lugs	Type	Weight
120A	L/H	2	Billet	5.3Kg / 11.71lbs
12V	-VE	B+ / IG / S / L	LMP150

Amp	Hand	Lugs	Type	Weight
175A	L/H	2	Billet	5.3Kg / 11.71lbs
12V	-VE	B+ / IG / S / L	LMP150

Amp	Hand	Lugs	Type	Weight
175A	L/H	2	Billet	5.3Kg / 11.71lbs
12V	-VE	B+ / IG / S / L	LMP150

Amp	Hand	Lugs	Type	Weight
180A	L/H	2	Billet	6.9Kg / 15.21lbs
12V	-VE	B+ / IG / S / L	LMP150

Amp	Hand	Lugs	Type	Weight
180A	L/H	2	Billet	6.9Kg / 15.21lbs
12V	-VE	B+ / IG / S / L	LMP150

Amp	Hand	Lugs	Type	Weight
240A	L/H	2	Billet	6.9Kg / 15.21lbs
12V	-VE	B+ / IG / S / L	LMP150

Amp	Hand	Lugs	Type	Weight
240A	L/H	2	Billet	6.9Kg / 15.21lbs
12V	-VE	B+ / IG / S / L	LMP150

Amp	Hand	Lugs	Type	Weight
250A	L/H	2	Billet	5.3Kg / 11.71lbs
12V	-VE	B+ / IG / S / L	LMP150

Amp	Hand	Lugs	Type	Weight
250A	L/H	2	Billet	5.3Kg / 11.71lbs
12V	-VE	B+ / IG / S / L	LMP150

Amp	Hand	Lugs	Type	Weight
290A	L/H	2	Billet	6.9Kg / 15.21lbs
12V	-VE	B+ / IG / S / L	LMP150

Amp	Hand	Lugs	Type	Weight
290A	L/H	2	Billet	6.9Kg / 15.21lbs
12V	-VE	B+ / IG / S / L	LMP150

Amp	Hand	Lugs	Type	Weight
320A	L/H	2	Billet	5.3Kg / 11.71lbs
12V	-VE	B+ / IG / S / L	LMP150

Amp	Hand	Lugs	Type	Weight
320A	L/H	2	Billet	5.3Kg / 11.71lbs
12V	-VE	B+ / IG / S / L	LMP150

Amp	Hand	Lugs	Type	Weight
390A	L/H	2	Billet	6.9Kg / 15.21lbs
12V	-VE	B+ / IG / S / L	LMP150

Amp	Hand	Lugs	Type	Weight
390A	L/H	2	Billet	6.9Kg / 15.21lbs
12V	-VE	B+ / IG / S / L	LMP150

Type	Weight	Voltage	Polarity	Power
Denso OSGR *r	3.7Kg / 8.15lbs	12V	Both	1.4kW
CW	9	29mm

Amp	Hand	Lugs	Type	Weight
100A	L/H	2	Cast	4.7Kg / 10.36lbs
12V	-VE	B+ / Lamp	Fixed	LMP032

Amp	Hand	Lugs	Type	Weight
120A	Butec	2	Billet	5.3Kg / 11.71lbs
12V	-VE	B+ / Lamp	LMP032

Amp	Hand	Lugs	Type	Weight
175A	Butec	2	Billet	5.3Kg / 11.71lbs
12V	-VE	B+ / Lamp	LMP032

Amp	Hand	Lugs	Type	Weight
180A	Butec	2	Billet	6.9Kg / 15.21lbs
12V	-VE	B+ / Lamp	LMP032

Engineered Solutions to Real Problems●OE Quality, No Compromise

Alternators

High output, low rpm, superior reliability, application specific 'fit and forget' direct replacement OE units.

More info

Dynators

Alternators disguised as dynamos. Authentic and reliable: the perfect upgrade.

More info

Starter Motors

Bespoke, OE quality, high torque, gear reduction and durable. Ideal for hostile environments, or the ultimate upgrade.

More info

Spares

WOSP manufacture and stock a complete range of spares including pulleys, brackets, kits, tensioners, pinions, regulators and looms.

More info

Spares

PRODUCT FILTER

PRODUCT CATEGORY

Engineered Solutions to Real Problems●OE Quality, No Compromise

Alternators

Dynators

Starter Motors

Spares
