Lotus Elan super-duty starter motor

LMS484

Type Weight Voltage Polarity Power
Denso OSGR 3.7Kg / 8.15lbs 12V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 9 29mm
Lotus Elise (Toyota 1ZR | 2ZR engine) 120A Alternator

LMA592

Amp Hand Lugs Type Weight
120A R/H 3 Cast 5.3Kg / 11.71lbs
Voltage Polarity Connection Pulley
12V -VE B+ / Lamp LMP038
Lotus Elise (Toyota 1ZR | 2ZR engine) 175A Alternator

LMA592-HO

Amp Hand Lugs Type Weight
175A R/H 3 Cast 5.3Kg / 11.71lbs
Voltage Polarity Connection Pulley
12V -VE B+ / Lamp LMP038
Lotus Elise (Toyota 1ZR | 2ZR engine) 250A Alternator

LMA592-SD

Amp Hand Lugs Type Weight
250A R/H 3 Cast 5.3Kg / 11.71lbs
Voltage Polarity Connection Pulley
12V -VE B+ / Lamp LMP038
Lotus Elise (Toyota 1ZR | 2ZR engine) 320A Alternator

LMA592-SD-HO

Amp Hand Lugs Type Weight
320A R/H 3 Cast 5.3Kg / 11.71lbs
Voltage Polarity Connection Pulley
12V -VE B+ / Lamp LMP038
Lotus Elise (Toyota 1ZR | 2ZR engine) starter motor

LMS1407

Type Weight Voltage Polarity Power
Denso PMGR 3.2Kg / 7.05lbs 12V -VE 1.3kW
Rotation
CW
Lotus Elite | Coventry Climax ('Climax' style tacho take off) 50A Dynator (+VE Ground) (4.5 Pulley)

LMDC39-TC+VE-4.5

Amp Voltage Polarity B+ Position Pulley
50A 12V +VE Fixed LMP091
Lotus Elite | Coventry Climax ('Climax' style tacho take off) 50A Dynator (+VE Ground) (5 Pulley)

LMDC39-TC+VE-5

Amp Voltage Polarity B+ Position Pulley
50A 12V +VE Fixed LMP060
Lotus Elite | Coventry Climax ('Climax' style tacho take off) 50A Dynator (4.5 Pulley)

LMDC39-TC-4.5

Amp Voltage Polarity B+ Position Pulley
50A 12V -VE Fixed LMP091
Lotus Elite | Coventry Climax ('Climax' style tacho take off) 50A Dynator (5 Pulley)

LMDC39-TC-5

Amp Voltage Polarity B+ Position Pulley
50A 12V -VE Fixed LMP060
Lotus Esprit S4 V8 slimline starter motor

LMS552

Type Weight Voltage Polarity Power
Hitachi PMGR 3.0Kg / 6.61lbs 12V -VE 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 10 27mm
Lotus Esprit Turbo (HC) 170A Alternator

LMA364-HO

Amp Hand Lugs Type Weight
170A R/H 2 Billet 3.9Kg / 8.61lbs
Voltage Polarity Connection Pulley
12V -VE B+ / Lamp LMP003
Lotus Esprit Turbo (HC) 75A Classic Alternator

LMA069

Amp Lugs Type Weight Voltage
75A 2 Cast 4.9Kg / 10.80lbs 12V
Polarity Connection B+ Position Pulley
-VE B+ / Lamp Fixed LMP001
Lotus Esprit Turbo (HC) 95A Alternator

LMA364

Amp Hand Lugs Type Weight
95A R/H 2 Billet 3.9Kg / 8.61lbs
Voltage Polarity Connection Pulley
12V -VE B+ / Lamp LMP003
Lotus Esprit Turbo (HC) 95A Classic Alternator

LMA002

Amp Lugs Type Weight Voltage
95A 2 Cast 5.2Kg / 11.46lbs 12V
Polarity Connection B+ Position Pulley
-VE B+ / Lamp Fixed LMP001
Lotus Esprit V8 120A Alternator

LMA003

Amp Lugs Type Weight Voltage
120A 4 Cast 5.2Kg / 11.46lbs 12V
Polarity Connection B+ Position Pulley
-VE B+ / Lamp Fixed LMP038
Lotus Europa (Ford | Twin Cam '71 - '75) high torque starter motor

LMS205

Type Weight Voltage Polarity Power
Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 9 29mm
Lotus Europa | Renault engines high torque starter motor

LMS859-11

Type Weight Voltage Polarity Power
Denso OSGR *r 3.7Kg / 8.15lbs 12V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 11 29mm
Lotus Europa RH Renault engine 50A Race Alternator

LMA265-EUROPA

Amp Hand Lugs Type Weight
50A R/H 3 Billet 2.7Kg / 5.95lbs
Voltage Polarity Connection Pulley
12V -VE B+ / IG / L LMP001
Lotus Europa RH Renault engine 70A Race Alternator

LMA272-EUROPA

Amp Hand Lugs Type Weight
70A R/H 3 Billet 3.3Kg / 7.28lbs
Voltage Polarity Connection Pulley
12V -VE B+ / L (optional) LMP001
Lotus Europa RH Renault engine 80A Race Alternator

LMA638-80-EUROPA

Amp Hand Lugs Type Weight
80A R/H 3 Cast 4.5Kg / 9.92lbs
Voltage Polarity Connection Pulley
12V -VE B+ / Lamp LMP004

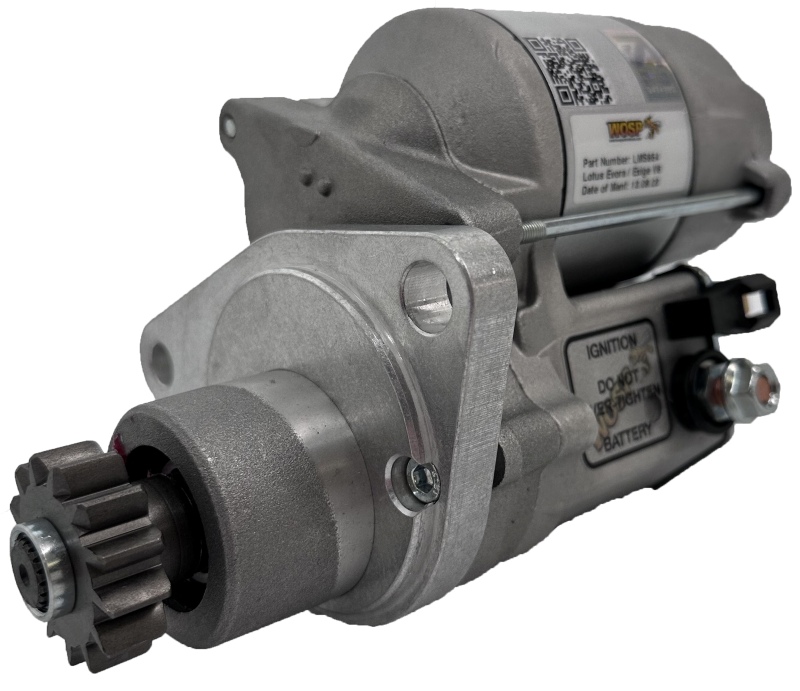

Lotus Evora | Exige V6 high torque starter motor

LMS654

Type Weight Voltage Polarity Power
Denso OSGR 3.7Kg / 8.15lbs 12V Both 1.4kW
Rotation Pinion Teeth Pinion Dia
CCW 13 40mm
Lotus Evroa | Toyota 3.5L 2GR-FE Engine 120A Alternator

LMA684-LO

Amp Hand Lugs Type Weight
120A 4-Lug 4 Cast 5.3Kg / 11.71lbs
Voltage Polarity Connection Pulley
12V -VE B+ / IG / S / L / M LMCP013
Lotus Evroa | Toyota 3.5L 2GR-FE Engine 170A Alternator

LMA683-HO

Amp Hand Lugs Type Weight
170A 4-Lug 4 Billet 3.9kg / 8.6lbs
Voltage Polarity Connection Pulley
12V -VE B+ / IG / S / L / M LMCP013
Lotus Evroa | Toyota 3.5L 2GR-FE Engine 175A Alternator

LMA684

Amp Hand Lugs Type Weight
175A 4-Lug 4 Cast 5.3Kg / 11.71lbs
Voltage Polarity Connection Pulley
12V -VE B+ / IG / S / L / M LMCP013
Lotus Evroa | Toyota 3.5L 2GR-FE Engine 250A Alternator

LMA684-MHO

Amp Hand Lugs Type Weight
250A 4-Lug 4 Cast 5.3Kg / 11.71lbs
Voltage Polarity Connection Pulley
12V -VE B+ / IG / S / L / M LMCP013
Lotus Evroa | Toyota 3.5L 2GR-FE Engine 320A Alternator

LMA684-HO

Amp Hand Lugs Type Weight
320A 4-Lug 4 Cast 5.3Kg / 11.71lbs
Voltage Polarity Connection Pulley
12V -VE B+ / IG / S / L / M LMCP013
Lotus Evroa | Toyota 3.5L 2GR-FE Engine 95A Alternator

LMA683

Amp Hand Lugs Type Weight
95A 4-Lug 4 Billet 3.9kg / 8.6lbs
Voltage Polarity Connection Pulley
12V -VE B+ / IG / S / L / M LMCP013
Lotus Exige | Lotus 2-Eleven 170A Alternator

LMA616-HO

Amp Hand Lugs Type Weight
170A 180° 3 Billet 3.9kg / 8.6lbs
Voltage Polarity Connection Pulley
12V -VE B+ / S / IG / L LMP013
Lotus Exige | Lotus 2-Eleven 95A Alternator

LMA616

Amp Hand Lugs Type Weight
95A 180° 3 Billet 3.9kg / 8.6lbs
Voltage Polarity Connection Pulley
12V -VE B+ / S / IG / L LMP013
Lotus twin cam dynamo tensioner

LMAB29
Lucas 10 tooth, 2 bolt, 4.5 inertia replacement slimline starter motor

LMS269-10-2

Type Weight Voltage Polarity Power
Hitachi PMGR 3.0Kg / 6.61lbs 12V -VE 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 10 29mm
Lucas 10 tooth, 2 bolt, 4.5 inertia replacement slimline starter motor (+VE Ground)

LMS269-10-2+VE

Type Weight Voltage Polarity Power
Hitachi PMGR 3.0Kg / 6.61lbs 12V +VE 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 10 29mm
Lucas 10 tooth, 3 bolt, 4.5 inertia replacement slimline starter motor

LMS269-10-3

Type Weight Voltage Polarity Power
Hitachi PMGR 3.0Kg / 6.61lbs 12V -VE 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 10 29mm
Lucas 10 tooth, 3 bolt, 4.5 inertia replacement slimline starter motor (+VE Ground)

LMS269-10-3+VE

Type Weight Voltage Polarity Power
Hitachi PMGR 3.0Kg / 6.61lbs 12V +VE 1.4kW
Rotation Pinion Teeth Pinion Dia
CW 10 29mm
Lucas 11AC 2-lug 120A Alternator

LMA459-LO

Amp Hand Lugs Type Weight
120A R/H 2 Billet 5.3Kg / 11.71lbs
Voltage Polarity Connection Pulley
12V -VE B+ / Lamp / W LMP001
Lucas 11AC 2-lug 175A Alternator

LMA459

Amp Hand Lugs Type Weight
175A R/H 2 Billet 5.3Kg / 11.71lbs
Voltage Polarity Connection Pulley
12V -VE B+ / Lamp / W LMP001
Lucas 11AC 2-lug 180A Alternator

LMA360-LO

Amp Hand Lugs Type Weight
180A R/H 2 Billet 6.9Kg / 15.21lbs
Voltage Polarity Connection Pulley
12V -VE B+ / Lamp / W LMP001
Lucas 11AC 2-lug 240A Alternator

LMA360

Amp Hand Lugs Type Weight
240A R/H 2 Billet 6.9Kg / 15.21lbs
Voltage Polarity Connection Pulley
12V -VE B+ / Lamp / W LMP001
Lucas 11AC 2-lug 250A Alternator

LMA459-MHO

Amp Hand Lugs Type Weight
250A R/H 2 Billet 5.3Kg / 11.71lbs
Voltage Polarity Connection Pulley
12V -VE B+ / Lamp / W LMP001
Lucas 11AC 2-lug 290A Alternator

LMA360-MHO

Amp Hand Lugs Type Weight
290A R/H 2 Billet 6.9Kg / 15.21lbs
Voltage Polarity Connection Pulley
12V -VE B+ / Lamp / W LMP001
Lucas 11AC 2-lug 390A Alternator

LMA360-HO

Amp Hand Lugs Type Weight
390A R/H 2 Billet 6.9Kg / 15.21lbs
Voltage Polarity Connection Pulley
12V -VE B+ / Lamp / W LMP001
Lucas 11AC 2-lug 95A Alternator (61mm Pulley)

LMA359-S1

Amp Hand Lugs Type Weight
95A R/H 2 Billet 3.9Kg / 8.61lbs
Voltage Polarity Connection Pulley
12V -VE B+ / Lamp / W LMP024
Lucas 11AC 2-lug 95A Alternator (68mm Pulley)

LMA359

Amp Hand Lugs Weight Voltage
95A R/H 2 3.9Kg / 8.61lbs 12V
Polarity Connection Pulley
-VE B+ / Lamp / W LMP031
Lucas 11AC 2-lug Alternator

LMA459-HO

Amp Hand Lugs Type Weight
320A R/H 2 Billet 5.3Kg / 11.71lbs
Voltage Polarity Connection Pulley
12V -VE B+ / Lamp / W LMP001
Lucas 11AC 2-lug S1 Alternator

LMA459-S1

Amp Hand Lugs Type Weight
175A R/H 2 Billet 5.3Kg / 11.71lbs
Voltage Polarity Connection Pulley
12V -VE B+ / Lamp / W LMP024
Lucas 11AC 80A Alternator (2-Lug)

LMA011AC-80

Amp Hand Lugs Type Weight
80A R/H 2 Cast 4.4Kg / 9.70lbs
Voltage Polarity Connection B+ Position Pulley
12V -VE B+ / Lamp Fixed LMP004
Lucas 11AC 80A Alternator (2-Lug) (+VE Ground)

LMA011AC-80+VE

Amp Hand Lugs Type Weight
80A R/H 2 Cast 4.4Kg / 9.70lbs
Voltage Polarity Connection B+ Position Pulley
12V +VE B+ / Lamp Fixed LMP004
Lucas 11AC 80A Alternator (3-Lug)

LMA012-80

Amp Hand Lugs Type Weight
80A R/H 3 Cast 4.5Kg / 9.92lbs
Voltage Polarity Connection B+ Position Pulley
12V -VE B+ / Lamp Fixed LMP004
Lucas 11AC 80A Alternator (3-Lug) (+VE Ground)

LMA012-80+VE

Amp Hand Lugs Type Weight
80A R/H 3 Cast 4.5Kg / 9.92lbs
Voltage Polarity Connection B+ Position Pulley
12V +VE B+ / Lamp Fixed LMP004

Type	Weight	Voltage	Polarity	Power
Denso OSGR	3.7Kg / 8.15lbs	12V	Both	1.4kW
CW	9	29mm

Amp	Hand	Lugs	Type	Weight
120A	R/H	3	Cast	5.3Kg / 11.71lbs
12V	-VE	B+ / Lamp	LMP038

Amp	Hand	Lugs	Type	Weight
175A	R/H	3	Cast	5.3Kg / 11.71lbs
12V	-VE	B+ / Lamp	LMP038

Amp	Hand	Lugs	Type	Weight
250A	R/H	3	Cast	5.3Kg / 11.71lbs
12V	-VE	B+ / Lamp	LMP038

Amp	Hand	Lugs	Type	Weight
320A	R/H	3	Cast	5.3Kg / 11.71lbs
12V	-VE	B+ / Lamp	LMP038

Type	Weight	Voltage	Polarity	Power
Denso PMGR	3.2Kg / 7.05lbs	12V	-VE	1.3kW
CW

Amp	Voltage	Polarity	B+ Position	Pulley
50A	12V	+VE	Fixed	LMP091

Amp	Voltage	Polarity	B+ Position	Pulley
50A	12V	+VE	Fixed	LMP060

Amp	Voltage	Polarity	B+ Position	Pulley
50A	12V	-VE	Fixed	LMP091

Amp	Voltage	Polarity	B+ Position	Pulley
50A	12V	-VE	Fixed	LMP060

Type	Weight	Voltage	Polarity	Power
Hitachi PMGR	3.0Kg / 6.61lbs	12V	-VE	1.4kW
CW	10	27mm

Amp	Hand	Lugs	Type	Weight
170A	R/H	2	Billet	3.9Kg / 8.61lbs
12V	-VE	B+ / Lamp	LMP003

Amp	Lugs	Type	Weight	Voltage
75A	2	Cast	4.9Kg / 10.80lbs	12V
-VE	B+ / Lamp	Fixed	LMP001

Amp	Hand	Lugs	Type	Weight
95A	R/H	2	Billet	3.9Kg / 8.61lbs
12V	-VE	B+ / Lamp	LMP003

Amp	Lugs	Type	Weight	Voltage
95A	2	Cast	5.2Kg / 11.46lbs	12V
-VE	B+ / Lamp	Fixed	LMP001

Amp	Lugs	Type	Weight	Voltage
120A	4	Cast	5.2Kg / 11.46lbs	12V
-VE	B+ / Lamp	Fixed	LMP038

Type	Weight	Voltage	Polarity	Power
Denso OSGR *r	3.7Kg / 8.15lbs	12V	Both	1.4kW
CW	9	29mm

Type	Weight	Voltage	Polarity	Power
Denso OSGR *r	3.7Kg / 8.15lbs	12V	Both	1.4kW
CW	11	29mm

Amp	Hand	Lugs	Type	Weight
50A	R/H	3	Billet	2.7Kg / 5.95lbs
12V	-VE	B+ / IG / L	LMP001

Amp	Hand	Lugs	Type	Weight
70A	R/H	3	Billet	3.3Kg / 7.28lbs
12V	-VE	B+ / L (optional)	LMP001

Amp	Hand	Lugs	Type	Weight
80A	R/H	3	Cast	4.5Kg / 9.92lbs
12V	-VE	B+ / Lamp	LMP004

Type	Weight	Voltage	Polarity	Power
Denso OSGR	3.7Kg / 8.15lbs	12V	Both	1.4kW
CCW	13	40mm

Amp	Hand	Lugs	Type	Weight
120A	4-Lug	4	Cast	5.3Kg / 11.71lbs
12V	-VE	B+ / IG / S / L / M	LMCP013

Amp	Hand	Lugs	Type	Weight
170A	4-Lug	4	Billet	3.9kg / 8.6lbs
12V	-VE	B+ / IG / S / L / M	LMCP013

Amp	Hand	Lugs	Type	Weight
175A	4-Lug	4	Cast	5.3Kg / 11.71lbs
12V	-VE	B+ / IG / S / L / M	LMCP013

Amp	Hand	Lugs	Type	Weight
250A	4-Lug	4	Cast	5.3Kg / 11.71lbs
12V	-VE	B+ / IG / S / L / M	LMCP013

Amp	Hand	Lugs	Type	Weight
320A	4-Lug	4	Cast	5.3Kg / 11.71lbs
12V	-VE	B+ / IG / S / L / M	LMCP013

Amp	Hand	Lugs	Type	Weight
95A	4-Lug	4	Billet	3.9kg / 8.6lbs
12V	-VE	B+ / IG / S / L / M	LMCP013

Amp	Hand	Lugs	Type	Weight
170A	180°	3	Billet	3.9kg / 8.6lbs
12V	-VE	B+ / S / IG / L	LMP013

Amp	Hand	Lugs	Type	Weight
95A	180°	3	Billet	3.9kg / 8.6lbs
12V	-VE	B+ / S / IG / L	LMP013

Type	Weight	Voltage	Polarity	Power
Hitachi PMGR	3.0Kg / 6.61lbs	12V	-VE	1.4kW
CW	10	29mm

Type	Weight	Voltage	Polarity	Power
Hitachi PMGR	3.0Kg / 6.61lbs	12V	+VE	1.4kW
CW	10	29mm

Type	Weight	Voltage	Polarity	Power
Hitachi PMGR	3.0Kg / 6.61lbs	12V	-VE	1.4kW
CW	10	29mm

Type	Weight	Voltage	Polarity	Power
Hitachi PMGR	3.0Kg / 6.61lbs	12V	+VE	1.4kW
CW	10	29mm

Amp	Hand	Lugs	Type	Weight
120A	R/H	2	Billet	5.3Kg / 11.71lbs
12V	-VE	B+ / Lamp / W	LMP001

Amp	Hand	Lugs	Type	Weight
175A	R/H	2	Billet	5.3Kg / 11.71lbs
12V	-VE	B+ / Lamp / W	LMP001

Amp	Hand	Lugs	Type	Weight
180A	R/H	2	Billet	6.9Kg / 15.21lbs
12V	-VE	B+ / Lamp / W	LMP001

Amp	Hand	Lugs	Type	Weight
240A	R/H	2	Billet	6.9Kg / 15.21lbs
12V	-VE	B+ / Lamp / W	LMP001

Amp	Hand	Lugs	Type	Weight
250A	R/H	2	Billet	5.3Kg / 11.71lbs
12V	-VE	B+ / Lamp / W	LMP001

Amp	Hand	Lugs	Type	Weight
290A	R/H	2	Billet	6.9Kg / 15.21lbs
12V	-VE	B+ / Lamp / W	LMP001

Amp	Hand	Lugs	Type	Weight
390A	R/H	2	Billet	6.9Kg / 15.21lbs
12V	-VE	B+ / Lamp / W	LMP001

Amp	Hand	Lugs	Type	Weight
95A	R/H	2	Billet	3.9Kg / 8.61lbs
12V	-VE	B+ / Lamp / W	LMP024

Amp	Hand	Lugs	Weight	Voltage
95A	R/H	2	3.9Kg / 8.61lbs	12V
-VE	B+ / Lamp / W	LMP031

Amp	Hand	Lugs	Type	Weight
320A	R/H	2	Billet	5.3Kg / 11.71lbs
12V	-VE	B+ / Lamp / W	LMP001

Amp	Hand	Lugs	Type	Weight
175A	R/H	2	Billet	5.3Kg / 11.71lbs
12V	-VE	B+ / Lamp / W	LMP024

Amp	Hand	Lugs	Type	Weight
80A	R/H	2	Cast	4.4Kg / 9.70lbs
12V	-VE	B+ / Lamp	Fixed	LMP004

Amp	Hand	Lugs	Type	Weight
80A	R/H	2	Cast	4.4Kg / 9.70lbs
12V	+VE	B+ / Lamp	Fixed	LMP004

Amp	Hand	Lugs	Type	Weight
80A	R/H	3	Cast	4.5Kg / 9.92lbs
12V	-VE	B+ / Lamp	Fixed	LMP004

Amp	Hand	Lugs	Type	Weight
80A	R/H	3	Cast	4.5Kg / 9.92lbs
12V	+VE	B+ / Lamp	Fixed	LMP004

Engineered Solutions to Real Problems●OE Quality, No Compromise

Alternators

High output, low rpm, superior reliability, application specific 'fit and forget' direct replacement OE units.

More info

Dynators

Alternators disguised as dynamos. Authentic and reliable: the perfect upgrade.

More info

Starter Motors

Bespoke, OE quality, high torque, gear reduction and durable. Ideal for hostile environments, or the ultimate upgrade.

More info

Spares

WOSP manufacture and stock a complete range of spares including pulleys, brackets, kits, tensioners, pinions, regulators and looms.

More info

Amp	Hand	Lugs	Weight	Voltage
95A	R/H	2	3.9Kg / 8.61lbs	12V
Polarity	Connection	Pulley
-VE	B+ / Lamp / W	LMP031

Spares

PRODUCT FILTER

PRODUCT CATEGORY

Engineered Solutions to Real Problems●OE Quality, No Compromise

Alternators

Dynators

Starter Motors

Spares
